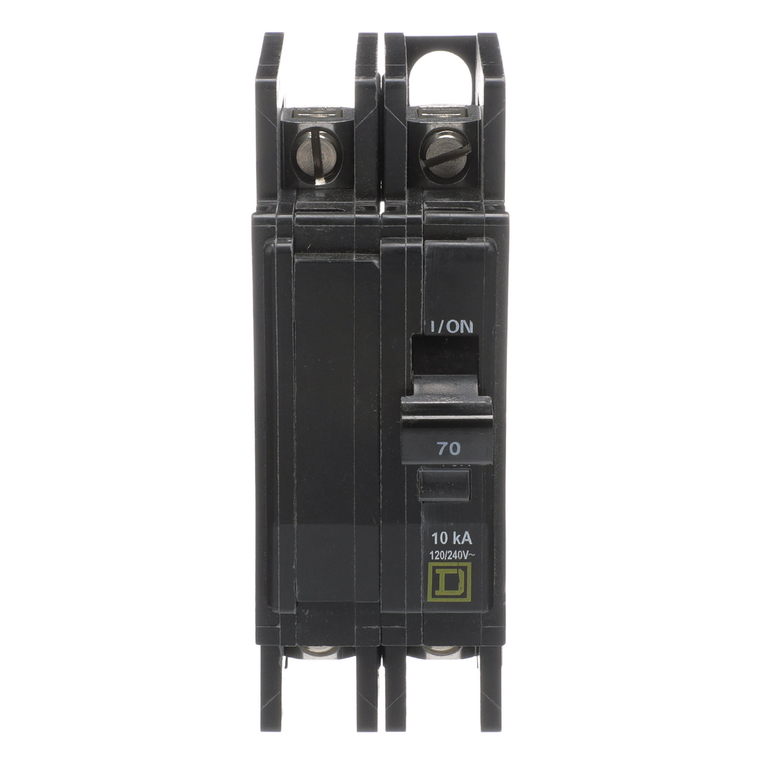

Schneider Electric QOU270 Miniature Circuit Breaker 120/240V 70A
Schneider Electric
$184.68
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOU Miniature Circuit Breakers, QOU270, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
- Width:
- 1.5 in
- Line Rated Current:
- 70 A
- Product Certifications:
- UL Listed || CSA || IEC
- Product Or Component Type:
- miniature circuit-breaker
- Circuit Breaker Application:
- HACR rated
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Awg Gauge:
- AWG 12...AWG 2/0 aluminium/copper
- Mounting Mode:
- unit mount
- Toxic Heavy Metal Free:
- Yes
- Height:
- 4.45 in
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Circularity Profile:
- N/A
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Range Of Product:
- QOU
- Circuit Breaker Type:
- standard
- Depth:
- 2.95 in
- Warranty:
- 18 months
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Compliant with Exemptions
- Halogen Content Performance:
- Halogen free product
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC || 48 V DC
