Schneider Electric RE17RAMU Timer Func A At 1C O 24Vac Dc 240Vac
Schneider Electric
$50.90
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

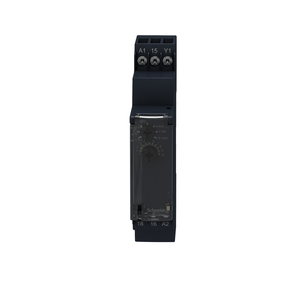

This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24 V DC, 24 to 240 V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. This timer offers pause and summation control signals. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0
- Time Delay Type:
- A, At
- Maximum Power Consumption In W:
- 0.6 W 24 V DC
- Vibration Resistance:
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Repeat Accuracy:
- +/- 0.5 % IEC 61812-1
- Marking:
- CE
- Maximum Switching Current:
- 8 A AC/DC
- Supply Frequency:
- 50...60 Hz +/- 5 %
- Product Certifications:
- CSA || cULus || GL
- Range Of Product:
- Harmony Timer Relays
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Breaking Capacity:
- 2000 VA
- Voltage Drift:
- +/- 0.2 %/V
- [Uimp] Rated Impulse Withstand Voltage:
- 5 kV 1.2/50 µs
- Product Or Component Type:
- dual function relay
- Mounting Position:
- any position in relation to normal vertical mounting plane
- Time Delay Type:
- power on-delay
- Reset Time:
- 120 ms on de-energisation typical
- Connections - Terminals:
- screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
- Discrete Output Type:
- relay
- Sustainable Offer Status:
- Green Premium product
- Creepage Distance:
- 4 kV/3 IEC 60664-1
- Maximum Delay Response:
- 100 ms
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Time Delay Range:
- 1...10 min || 10...100 h || 0.1...1 s || 6...60 s || 6...60 min || 1...10 s || 1...10 h
- Functionality:
- on-delay timing
- Contacts Material:
- cadmium free
- Mercury Free:
- Yes
- Input Voltage:
- 10 V
- Environmental Disclosure:
- ENVPEP121117EN
- Power Consumption In Va:
- 0-32 VA 240 V AC
- Ambient Air Temperature For Storage:
- -30-60 °C
- Net Weight:
- 0.07 kg
- Contacts Type And Composition:
- 1 C/O
- Width:
- 17.5 mm
- Local Signalling:
- LED indicator on steady: relay energised, no timing in progress || LED indicator 80 % ON and 20 % OFF flashing: timing in progress || LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
- Impulse Duration:
- 100 ms with load in parallel typical || 30 ms typical
- Mechanical Durability:
- 10000000 cycles
- Minimum Switching Current:
- 10 mA 5 V DC
- Control Type:
- selector switch front panel
- Height:
- 90 mm
- Rohs Exemption Information:
- Yes
- Relative Humidity:
- 93-93 % without condensation IEC 60068-2-30
- China Rohs Regulation:
- X
- Insulation Resistance:
- 100 MOhm 500 V DC IEC 60664-1
- Housing Material:
- self-extinguishing
- Electromagnetic Compatibility:
- electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3 || elec
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Immunity To Microbreaks:
- 20 ms
- Maximum Switching Voltage:
- 250 V AC
- [Us] Rated Supply Voltage:
- 24...240 V AC 50/60 Hz || 24 V DC
- Dielectric Strength:
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
- Electrical Durability:
- 100000 cycles resistive 8 A 250 V AC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Safety Reliability Data:
- B10d = 270000 || MTTFd = 296.8 years
- Temperature Drift:
- +/- 0.05 %/°C
- Standards:
- 2006/95/EC || 2004/108/EC || IEC 61812-1 || IEC 61000-6-3 || IEC 61000-6-1 || IEC 61000-6-4 || IEC 61000-6-2
- On-Load Factor:
- 1
- Nominal Output Current:
- 0.333333333333333
- Operating Rate In Hz:
- 10 Hz
- Device Short Name:
- RE17R
- Depth:
- 72 mm
- Voltage Range:
- 0.85...1.1 Us
- Ambient Air Temperature For Operation:
- -20-60 °C
- Circularity Profile:
- ENVEOLI121113EN
- Compatibility Code:
- RE17
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ip Degree Of Protection:
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
