Schneider Electric RE22R1DMR Flashing Timer Relay
Schneider Electric
$65.58
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

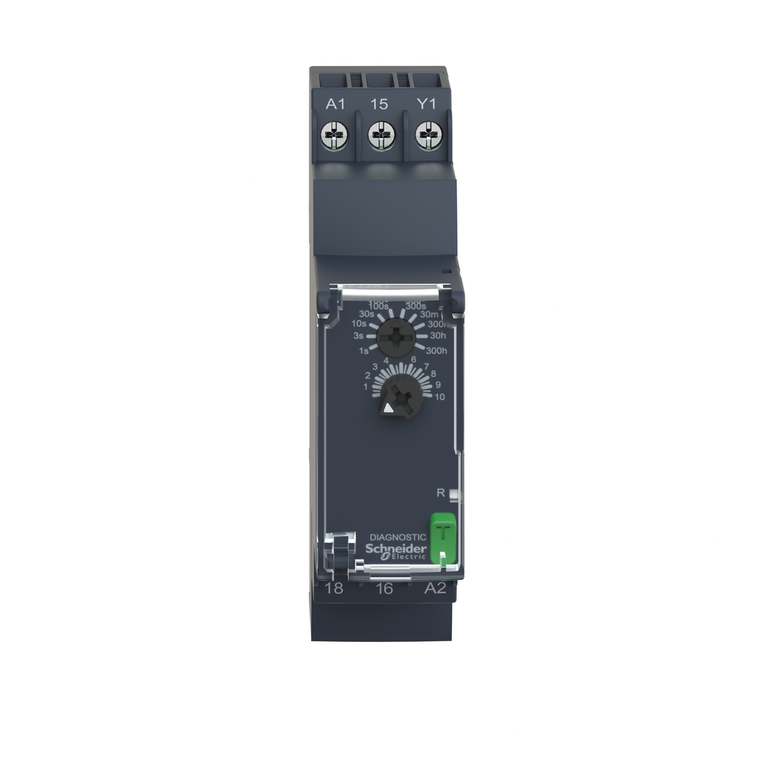

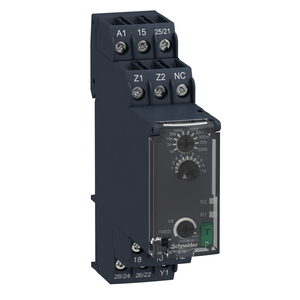

Schneider Electric RE22R1DMR Flashing Timer Relay
This Harmony RE22 modular dual function timer can be set between 1 seconds and 300 hours, has an output rating of 8 amperes and it is 22.5 millimeters wide. This modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. Dual function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
- Rohs Exemption Information:
- Yes
- Reset Time:
- 120 ms on de-energisation
- Temperature Drift:
- +/- 0.05 %/°C
- Minimum Pulse Duration:
- 100 ms with load in parallel || 30 ms
- Mercury Free:
- Yes
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Control Type:
- rotary knob || diagnostic button
- Voltage Range:
- 0.85...1.1 Us
- Immunity To Microbreaks:
- 10 ms
- Electromagnetic Compatibility:
- fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2
- Input Voltage:
- <= 2.4 V
- Dielectric Strength:
- 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
- Time Delay Type:
- symmetrical flashing
- Connections - Terminals:
- screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
- Shock Resistance:
- 15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27
- Power Consumption In W:
- 1.5 W 240 V DC
- Directives:
- 2004/108/EC - electromagnetic compatibility || 2006/95/EC - low voltage directive
- Range Of Product:
- Harmony Timer Relays
- Discrete Output Type:
- relay
- Status Led:
- Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED fast flashing)timing in progress and output relay de-energised || Yellow LED slow flashing)timing in progress and output relay energised
- Supply Frequency:
- 50...60 Hz +/- 5 %
- Environmental Disclosure:
- ENVPEP1401008EN
- Repeat Accuracy:
- +/- 0.5 % IEC 61812-1
- Vibration Resistance:
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Maximum Switching Current:
- 0.333333333333333
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -20-60 °C
- [Us] Rated Supply Voltage:
- 24...240 V AC/DC 50/60 Hz
- Mounting Position:
- any position
- Circularity Profile:
- ENVEOLI1401008EN
- Power Consumption In Va:
- 3-3 VA 240 V AC
- Standards:
- UL 508 || IEC 61812-1
- Product Or Component Type:
- dual function relay
- Electrical Durability:
- 100000 cycles, 8 A at 250 V, AC-1 || 100000 cycles, 2 A at 24 V, DC-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Net Weight:
- 0.1 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Voltage Drift:
- +/- 0.2 %/V
- Housing Material:
- self-extinguishing
- Mechanical Durability:
- 10000000 cycles
- Ip Degree Of Protection:
- housing IP40 IEC 60529 || front face IP50 IEC 60529 || terminals IP20 IEC 60529
- Minimum Switching Current:
- 10 mA 5 V DC
- Maximum Delay Response:
- 100 ms
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- Switching Capacity In Va:
- 2000 VA
- Contacts Type And Composition:
- 1 C/O timed contact, cadmium free
- Insulation Resistance:
- 100 MOhm 500 V DC IEC 60664-1
- [Uimp] Rated Impulse Withstand Voltage:
- 5 kV 1.2-50 µs IEC 60664-1
- China Rohs Regulation:
- X
- Nominal Output Current:
- 0.333333333333333
- Creepage Distance:
- 4 kV/3 IEC 60664-1
- Device Short Name:
- RE22
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Maximum Switching Voltage:
- 250 V AC
- Safety Reliability Data:
- B10d = 280000 || MTTFd = 308.2 years
- Time Delay Range:
- 0.05...1 s || 30...300 h || 30...300 min || 30...300 s || 3...30 min || 1...10 s || 3...30 s || 0.3...3 s || 10...100 s || 3...30 h
- Pollution Degree:
- 3 IEC 60664-1
- Overvoltage Category:
- III IEC 60664-1
- Width:
- 22.5 mm
- Relative Humidity:
- 95-95 % 25-55 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Certifications:
- GL || EAC || UL || CCC || CSA || CE || RCM
- Catalog:
- View
