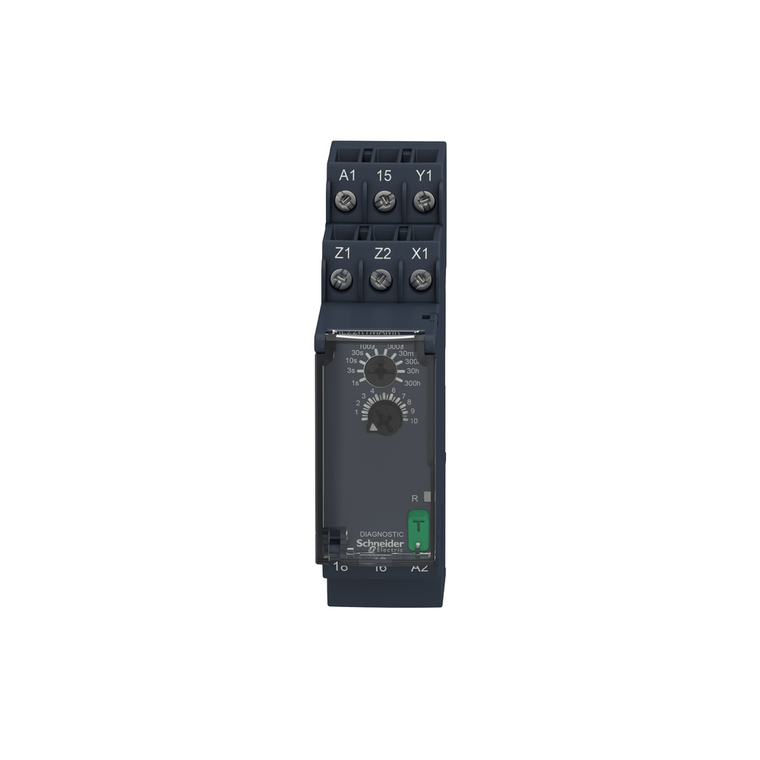

Schneider Electric RE22R1MAMR On Delay Timer
Schneider Electric
$80.89
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RE22 timing relay can be set between 0.5mm wide and can be supplied with 24V to 240V AC. This modular timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It also offers a sealable cover, simple and precise settings with rotary trimmers. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. Diagnostic button allows simple setup and trouble shooting by non-specialists. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
- [Us] Rated Supply Voltage:
- 24...240 V AC/DC 50/60 Hz
- Dielectric Strength:
- 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
- Nominal Output Current:
- 0.333333333333333
- Range Of Product:
- Harmony Timer Relays
- Contacts Type And Composition:
- 1 C/O timed contact, cadmium free
- [Uimp] Rated Impulse Withstand Voltage:
- 5 kV 1.2-50 µs IEC 60664-1
- Housing Material:
- self-extinguishing
- Mounting Position:
- any position
- Switching Capacity In Va:
- 2000 VA
- Directives:
- 2006/95/EC - low voltage directive || 2004/108/EC - electromagnetic compatibility
- Repeat Accuracy:
- +/- 0.5 % IEC 61812-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- China Rohs Regulation:
- X
- Vibration Resistance:
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Minimum Switching Current:
- 10 mA 5 V DC
- Insulation Resistance:
- 100 MOhm 500 V DC IEC 60664-1
- Status Led:
- Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED fast flashing)timing in progress and output relay de-energised || Yellow LED slow flashing)timing in progress and output relay energised
- Immunity To Microbreaks:
- 10 ms
- Creepage Distance:
- 4 kV/3 IEC 60664-1
- Standards:
- UL 508 || IEC 61812-1
- Control Type:
- rotary knob || diagnostic button || potentiometer external
- Temperature Drift:
- +/- 0.05 %/°C
- Ambient Air Temperature For Operation:
- -20-60 °C
- Ip Degree Of Protection:
- housing IP40 IEC 60529 || front face IP50 IEC 60529 || terminals IP20 IEC 60529
- Pollution Degree:
- 3 IEC 60664-1
- Supply Frequency:
- 50...60 Hz +/- 5 %
- Time Delay Range:
- 3...30 h || 0.05...1 s || 30...300 s || 3...30 min || 3...30 s || 30...300 h || 30...300 min || 0.3...3 s || 10...100 s || 1...10 s
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Electrical Durability:
- 100000 cycles, 8 A at 250 V, AC-1 || 100000 cycles, 2 A at 24 V, DC-1
- Connections - Terminals:
- screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
- Safety Reliability Data:
- B10d = 190000 || MTTFd = 205.4 years
- Overvoltage Category:
- III IEC 60664-1
- Relative Humidity:
- 95-95 % 25-55 °C
- Mercury Free:
- Yes
- Power Consumption In W:
- 1.5 W 240 V DC
- Discrete Output Type:
- relay
- Input Voltage:
- <= 2.4 V
- Sustainable Offer Status:
- Green Premium product
- Voltage Range:
- 0.85...1.1 Us
- Mechanical Durability:
- 10000000 cycles
- Electromagnetic Compatibility:
- fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2
- Voltage Drift:
- +/- 0.2 %/V
- Product Or Component Type:
- multifunction relay
- Circularity Profile:
- ENVEOLI1401008EN
- Product Certifications:
- EAC || CSA || RCM || UL || GL || CE || CCC
- Net Weight:
- 0.1 kg
- Time Delay Type:
- power on-delay
- Width:
- 22.5 mm
- Shock Resistance:
- 15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27
- Minimum Pulse Duration:
- 100 ms with load in parallel || 30 ms
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- Maximum Delay Response:
- 100 ms
- Environmental Disclosure:
- ENVPEP1401008EN
- Reset Time:
- 120 ms on de-energisation
- Device Short Name:
- RE22
- Rohs Exemption Information:
- Yes
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Maximum Switching Current:
- 0.333333333333333
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Maximum Switching Voltage:
- 250 V AC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Power Consumption In Va:
- 3-3 VA 240 V AC
- Catalog:
- View
- Datasheet:
- View
