Schneider Electric RE22R2QEMT Star-Delta Timer Relay
Schneider Electric
$54.44
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric RE22R2QEMT Star-Delta Timer Relay

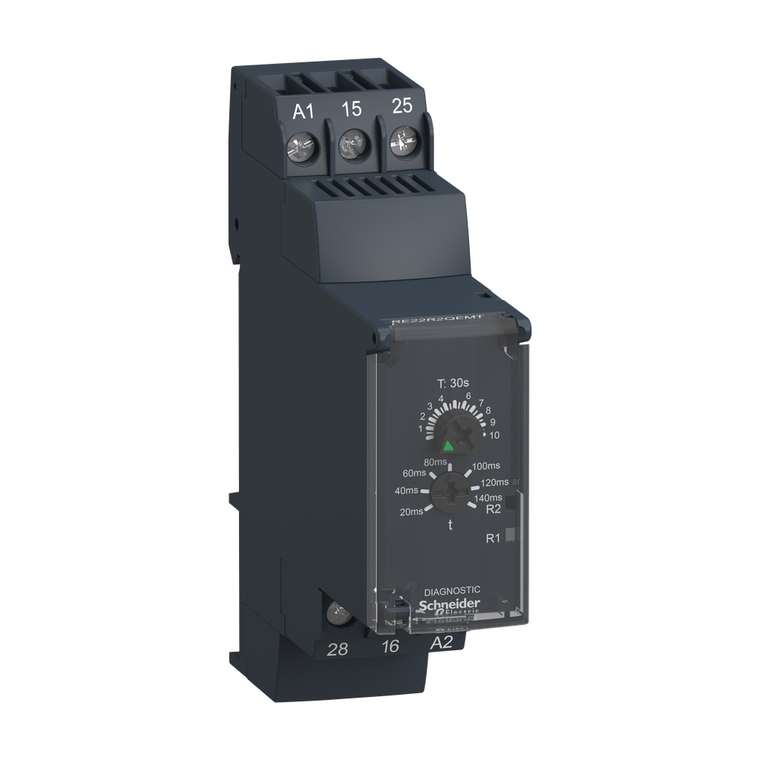

This Harmony RE22 modular single function timer can be set between 0.3 and 30s." "It provides function Qe and it is mountable on DIN rail." "This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers." "It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "Selectable timing range offers a one stop solution for your power management system." "Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0
- Maximum Switching Voltage:
- 250 V AC
- Reset Time:
- 120 ms on de-energisation
- Electrical Durability:
- 100000 cycles, 8 A at 250 V, AC-1 || 100000 cycles, 2 A at 24 V, DC-1
- Device Short Name:
- RE22
- Directives:
- 2006/95/EC - low voltage directive || 2004/108/EC - electromagnetic compatibility
- Vibration Resistance:
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Status Led:
- Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED fast flashing)timing in progress and output relay de-energised || Yellow LED slow flashing)timing in progress and output relay energised
- Ip Degree Of Protection:
- housing IP40 IEC 60529 || terminals IP20 IEC 60529 || front panel IP50 IEC 60529
- Housing Material:
- self-extinguishing
- Width:
- 22.5 mm
- [Us] Rated Supply Voltage:
- 380...415 V AC 50/60 Hz
- Time Delay Range:
- 0.3...30 s
- Mounting Position:
- any position
- Temperature Drift:
- +/- 0.05 %/°C
- Switching Capacity In Va:
- 2000 VA
- China Rohs Regulation:
- X
- Contacts Type And Composition:
- 2 C/O timed contact, cadmium free
- Shock Resistance:
- 15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27
- Overvoltage Category:
- III IEC 60664-1
- Connections - Terminals:
- screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
- Power Consumption In Va:
- 15-15 VA 380 V AC
- Creepage Distance:
- 4 kV/3 IEC 60664-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Input Voltage:
- <= 38 V
- Product Certifications:
- EAC || GL || CSA || UL || CCC || RCM || CE
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Relative Humidity:
- 95-95 % 25-55 °C
- Mechanical Durability:
- 10000000 cycles
- Maximum Switching Current:
- 0.333333333333333
- Nominal Output Current:
- 0.333333333333333
- Voltage Range:
- 0.85...1.16 Us
- Immunity To Microbreaks:
- 10 ms
- Ambient Air Temperature For Operation:
- -20-60 °C
- Range Of Product:
- Harmony Timer Relays
- Insulation Resistance:
- 100 MOhm 500 V DC IEC 60664-1
- Standards:
- IEC 61812-1 || UL 508
- Minimum Switching Current:
- 10 mA 5 V DC
- Dielectric Strength:
- 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
- Electromagnetic Compatibility:
- fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test
- Time Delay Type:
- star-delta
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- single function relay
- Repeat Accuracy:
- +/- 0.5 % IEC 61812-1
- Environmental Disclosure:
- ENVPEP1401008EN
- Voltage Drift:
- +/- 0.2 %/V
- Circularity Profile:
- ENVEOLI1401008EN
- Maximum Delay Response:
- 100 ms
- Discrete Output Type:
- relay
- Pollution Degree:
- 3 IEC 60664-1
- Mercury Free:
- Yes
- Safety Reliability Data:
- B10d = 250000 || MTTFd = 273.9 years
- Ambient Air Temperature For Storage:
- -40-70 °C
- [Uimp] Rated Impulse Withstand Voltage:
- 5 kV 1.2-50 µs IEC 60664-1
- Supply Frequency:
- 50...60 Hz +/- 5 %
- Control Type:
- rotary knob || diagnostic button
- Sustainable Offer Status:
- Green Premium product
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.09 kg
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- Catalog:
- View
- Datasheet:
- View
