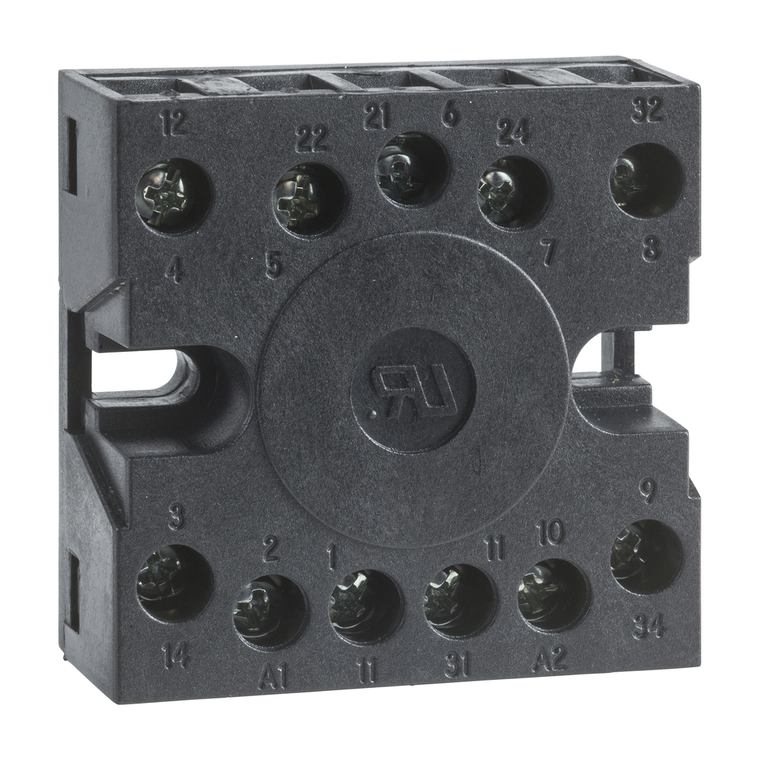

Schneider Electric RE48ASOC11AR Re48 Timer Rear Connect Socket
SKU:
RE48ASOC11AR
UPC:
3389110740851
MPN:
Condition:
New
Contacts Type And Composition:
2 C/O
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Ip Degree Of Protection:
IP20
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Accessory / Separate Part Destination:
timing relay
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Pin Number:
11 pins
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
socket
Warranty:
18 months
Mercury Free:
Yes
China Rohs Regulation:
X
Circularity Profile:
ENVEOLI1512002EN
Environmental Disclosure:
ENVPEP1512002EN
Product Compatibility:
RE48ACV12MW || RE48AML12MW
Accessory / Separate Part Category:
connection accessories
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption Information:
Yes
Range Of Product:
Harmony Timer Relays
Accessory / Separate Part Designation:
IP20 socket with screw terminal connections on rear face
