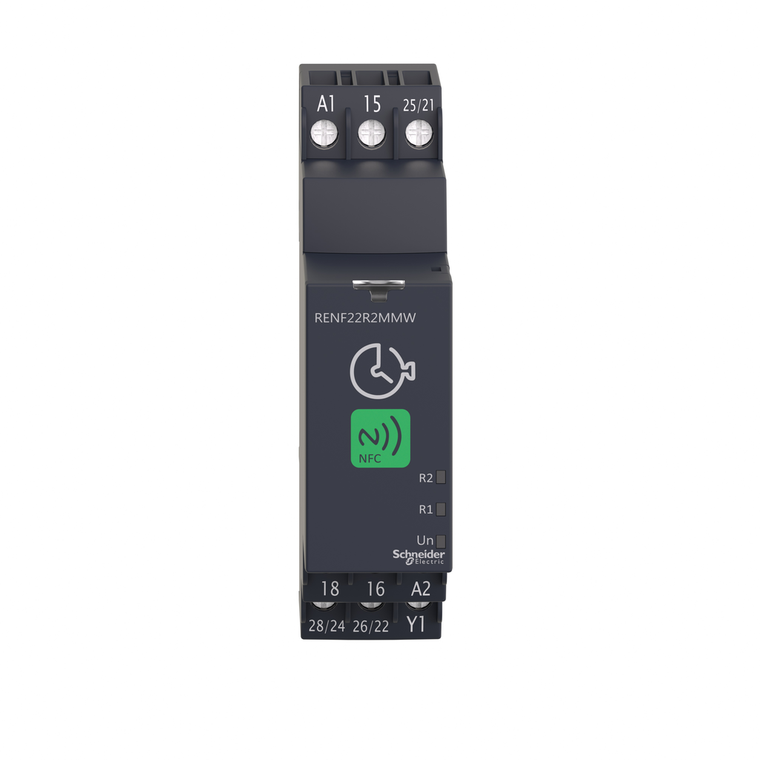

Schneider Electric RENF22R2MMW Multifunction Nfc Timer Relay

Schneider Electric RENF22R2MMW Multifunction Nfc Timer Relay

Schneider Electric
SKU:
RENF22R2MMW
|
UPC:
3606480936203
$90.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This modular timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers.
Additional Information
Mechanical Durability:
10000000 cycles
Net Weight:
0.0904 kg
Tightening Torque:
0.6-1 N.m IEC 60947-1 || 5.3-8.8 lbf.in IEC 60947-1
Supply Frequency:
50...60 Hz +/- 5 %
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation:
-20-60 °C
China Rohs Regulation:
X
Mounting Position:
any position
Reset Time:
120 ms on de-energisation
Ambient Air Temperature For Storage:
-40-70 °C
Maximum Operating Frequency:
13.56 MHz
[Us] Rated Supply Voltage:
24...240 V AC/DC
Maximum Delay Response:
100 ms
Pollution Degree:
3 IEC 60664-1
Maximum Switching Voltage:
250 V
Discrete Output Type:
relay
Nominal Output Current:
0.333333333333333
Contacts Type And Composition:
2 C/O timed contact, cadmium free || 1 C/O timed and instantaneous contact, cadmium free
Shock Resistance:
15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27
Temperature Drift:
+/- 0.05 %/°C
Voltage Range:
0.85...1.1 Un
Electromagnetic Compatibility:
electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || fast transients immuni
Input Voltage:
<= 2.4 V
Circularity Profile:
ENVEOLI1401008EN
Relative Humidity:
95-95 % 25-55 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Uimp] Rated Impulse Withstand Voltage:
5 kV 1.2/50 µs IEC 60664-1
Safety Reliability Data:
MTTFd = 227.5 years 100 % duty cycle continuous operating condition at 30 °C
Product Compatibility:
NFC enabled mobile device
Maximum Switching Current:
0.333333333333333
Overvoltage Category:
III IEC 60664-1
Mounting Support:
35 mm DIN rail conforming to IEC 60715
Minimum Pulse Duration:
100 ms with load in parallel || 60 ms no-load
Insulation Resistance:
100 MOhm 500 V DC IEC 60664-1
Vibration Resistance:
20 m/s² 10-150 Hz)IEC 60068-2-6
Ip Degree Of Protection:
housing IP40 IEC 60529 || front face IP40 IEC 60529 || terminals IP20 IEC 60529
Product Certifications:
CE || CSA || KC || UL || CCC || EAC || DNV-GL
Standards:
IEC 61000-6-1 || IEC 61000-6-2 || IEC 61000-6-4 || EN 61812-1 || IEC 61000-6-3
Minimum Switching Current:
10 mA 5 V
Device Short Name:
RENF22
Time Delay Range:
0.05 s...999 h
Operating System:
Android
Mercury Free:
Yes
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Environmental Disclosure:
ENVPEP1401008EN
Software Version:
V4.4 and above
Housing Material:
self-extinguishing
Nominal Power:
0.0002 mW
Directives:
2014/35/EU - low voltage directive || 2014/53/EU - radio equipment directive || 2014/30/EU - electromagnetic compatibility
Time Delay Type:
power on-delay || on-delay and off-delay || pulse delay || asymmetrical on-delay and off-delay || interval || off-delay || symmetrical flashing || safe-guard || star-delta || asymmetrical flashing || bistable
Creepage Distance:
4 kV/3 IEC 60664-1
Operating Distance:
10 mm
Power Consumption In W:
1.5 W 240 V DC || 0.6 W 24 V DC
Local Signalling:
Un, green LED steady)power ON || R1, amber LED steady)relay energised || R2, amber LED steady)relay energised || pairing, green LED steady)communication status || Un, green LED fast blinking)diagnosis mode || R1, amber LED blinking)timing in progress
Immunity To Microbreaks:
10 ms
Electrical Durability:
100000 cycles for resistive load, 8 A at 250 V, AC
Product Or Component Type:
multifunction relay
Function Available:
A- Power on-delay relay-2 C/O || Ac- On-delay and off-delay relay w/ control signal-2 C/O || Ad- Pulse delayed relay w/ control signal-2 C/O || Ah- Pulse delayed relay (single cycle) w/ control signal-2 C/O || Ak- Asymmetrical on-delay and off -delay
Connections - Terminals:
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
Switching Capacity In Va:
2000 VA
Voltage Drift:
+/- 0.2 %/V
Software Designation:
Zelio NFC downloadable from Google Play store)
Width:
22.5 mm
Repeat Accuracy:
+/- 0.2 % 10 s...999 h || +/- 0.5 % 100 ms...10 s || +/- 0.7 % 50...100 ms
Range Of Product:
Harmony Timer Relays
Dielectric Strength:
2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply with basic insulation || basic insulation
Setting Accuracy Of Time Delay:
+/- 1 % 1...999 h 25 °C || +/- 2 % 1...3600 s 25 °C || +/- 20 ms 100 ms...10 s 25 °C || +/- 30 ms 50...100 ms 25 °C
Power Consumption In Va:
3-3 VA 240 V AC
Sustainable Offer Status:
Green Premium product
