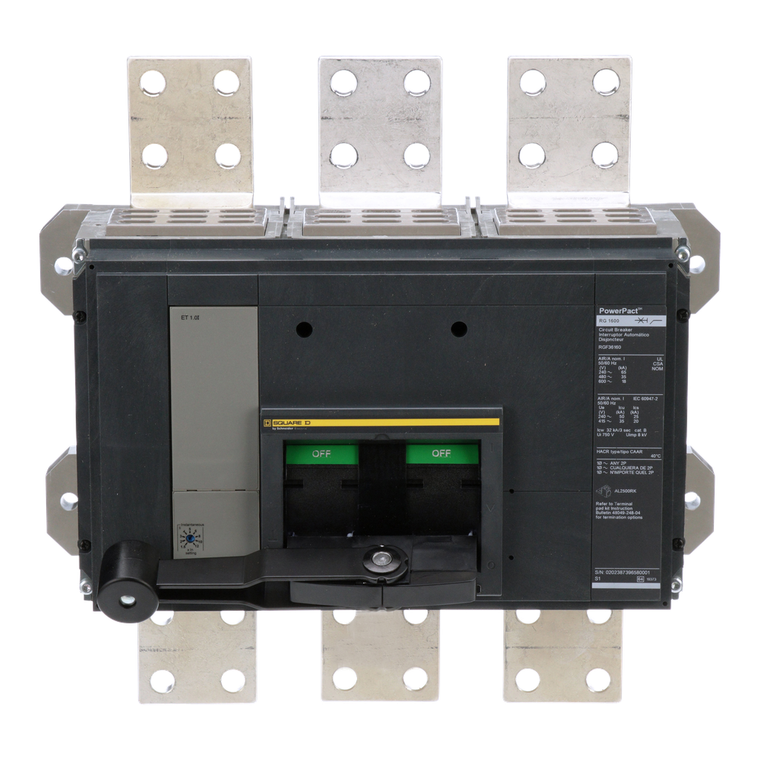

Schneider Electric RGF36160 Molded Case Circuit Breaker 600V 1600A

Schneider Electric RGF36160 Molded Case Circuit Breaker 600V 1600A

Schneider Electric
SKU:
RGF36160
|
UPC:
785901238430
Availability:
Factory stock
$22,373.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has an electronic trip unit, ET 1.0I. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 1600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. The circuit breaker has a continuous current rating of 80%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Pvc Free:
Yes
Environmental Disclosure:
ENVPEP2206034EN
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Quality Labels:
CE
Ambient Air Temperature For Operation:
-25-70 °C
Quantity Per Set:
1
Mounting Mode:
unit mount busbar)
Pollution Degree:
3 IEC 60947-1
Network Frequency:
50/60 Hz
Mercury Free:
Yes
Width:
16.53 in
Warranty:
18 months
Tightening Torque:
68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 68-68 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Circularity Profile:
ENVEOLI2206034EN
Mounting Support:
busbar
Product Name:
PowerPact R
Electrical Connection:
busbar connection, line || busbar connection, load
Product Certifications:
UL || CSA || NOM
Ip Degree Of Protection:
IP40
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Height:
16.24 in
Eu Rohs Directive:
Compliant with Exemptions
Range:
PowerPact
Trip Unit Name:
ET 1.0I
Depth:
14.49 in
Circuit Breaker Application:
HACR rated
Device Application:
distribution
Net Weight:
52 lb(US)
Trip Unit Technology:
electronic, basic, ET 1.0I, I
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Rohs Exemption Information:
Yes
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Control Type:
operating handle
Product Or Component Type:
circuit breaker
Breaking Capacity Code:
G
Suitability For Isolation:
yes IEC 60947-2
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Local Signalling:
trip indicator
Sustainable Offer Status:
Green Premium product
Poles Description:
3P
Continuous Current Rating:
0.8
Utilisation Category:
category A
Halogen Content Performance:
Halogen free plastic parts product
Terminal Identifier:
AL2500RK
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Line Rated Current:
1600-1600 A
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Wire Stripping Length:
35 mm
Ambient Air Temperature For Storage:
-50-85 °C
Magnetic Tripping Current:
2400-19200 A
