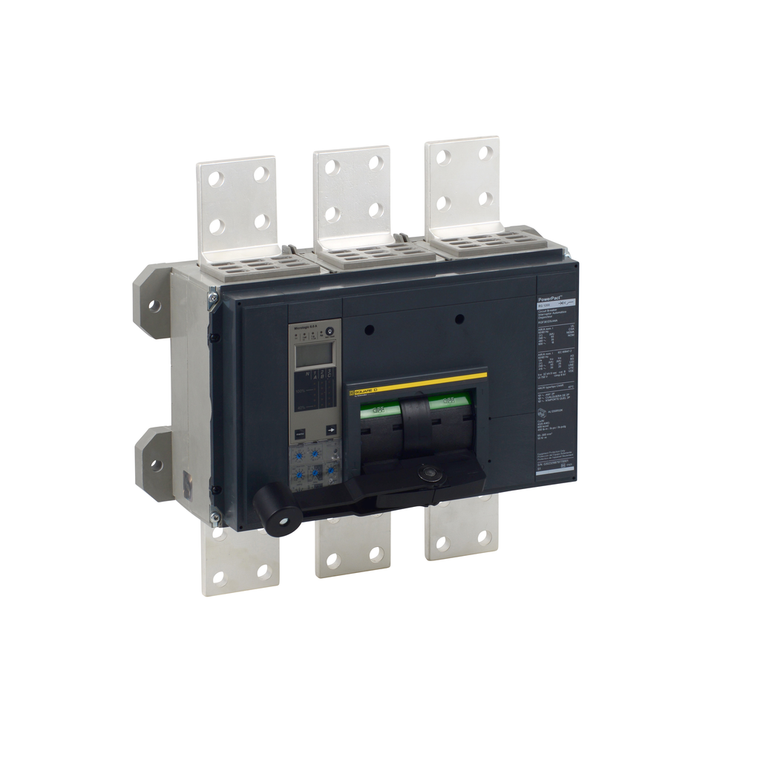

Schneider Electric RJF36300U44A Molded Case Circuit Breaker 600V 3000A

Schneider Electric RJF36300U44A Molded Case Circuit Breaker 600V 3000A

Schneider Electric
SKU:
RJF36300U44A
|
UPC:
3606486287248
$60,965.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 3000A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. The circuit breaker has a continuous current rating of 80%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Electrical Connection:
busbar connection, line || busbar connection, load
Wire Stripping Length:
35 mm
Environmental Disclosure:
ENVPEP2206034EN
Mounting Support:
busbar
Range:
PowerPact
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Breaking Capacity Code:
J
Pollution Degree:
3 IEC 60947-1
Mercury Free:
Yes
Poles Description:
3P
Rohs Exemption Information:
Yes
Local Signalling:
alarm 1 LED yellow)long-time pick up) || 1 LED red)long-time pick up) || trip causes 1 LED red) || 1 LED red)digital ammeter) || ground indicator 1 LED red) || phase-loading LED green)load balancing)
Product Name:
PowerPact R
Circuit Breaker Application:
HACR rated
Eu Rohs Directive:
Compliant with Exemptions
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Quantity Per Set:
1
Device Application:
distribution
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Width:
16.53 in
Product Certifications:
UL || CSA || NOM
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Tightening Torque:
68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 68-68 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Height:
16.24 in
Ip Degree Of Protection:
IP40
Network Frequency:
50/60 Hz
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Circularity Profile:
ENVEOLI2206034EN
Line Rated Current:
3000-3000 A
Mounting Mode:
unit mount busbar)
Pvc Free:
Yes
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Product Or Component Type:
circuit breaker
Trip Unit Technology:
electronic, ammeter, MicroLogic 6.0 A, LSIG
Continuous Current Rating:
0.8
Suitability For Isolation:
yes IEC 60947-2
Control Type:
operating handle
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Ambient Air Temperature For Operation:
-25-70 °C
Depth:
14.49 in
Net Weight:
52 lb(US)
Utilisation Category:
category A
Trip Unit Name:
MicroLogic 6.0 A
Halogen Content Performance:
Halogen free plastic parts product
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Terminal Identifier:
AL2500RK
Quality Labels:
CE
