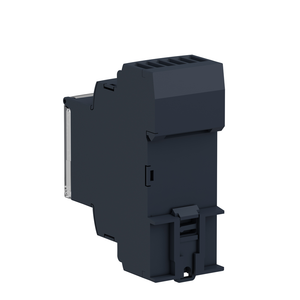

Schneider Electric RM35LM33MW Multifunc Lev Contrl Resist 24-240Vac/Dc

Schneider Electric RM35LM33MW Multifunc Lev Contrl Resist 24-240Vac/Dc

Schneider Electric
SKU:
RM35LM33MW
|
UPC:
3389119405232
$115.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony RM35-LM relay allows monitoring of level control in 3-phase networks. This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Additional Information
Electrical Durability:
100000 cycles
Mechanical Durability:
30000000 cycles
Relay Name:
RM35L
[Us] Rated Supply Voltage:
AC/DC non self-powered
Relay Monitored Parameters:
detection by resistive probes
Range Of Product:
Harmony Control Relays
Safety Reliability Data:
B10d = 170000 || MTTFd = 182.6 years
Local Signalling:
for relay ON LED (yellow) || for power ON LED (green) || for timer ON LED (yellow)
Connections - Terminals:
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end ||
Environmental Disclosure:
ENVPEP1504008EN
Control Circuit Voltage Limits:
15 % + 10 % Un
Electromagnetic Compatibility:
emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to NF EN/IEC 6
Tightening Torque:
0.6-1 N.m IEC 60947-1
Warranty:
18 months
Sensitivity Scale:
0.25...5 kOhm LS (Low Sensitivity) || 5...100 kOhm St (Standard Sensitivity) || 50...1000 kOhm HS (High Sensitivity)
Nominal Output Current:
0.208333333333333
Maximum Power Consumption In W:
1.5 W DC
Measurement Accuracy:
+/- 10 % of the full scale value || +/- 20 % for the HS range
Measurement Range:
0.25...1000 Ohm
Product Certifications:
CSA || GL || UL || C-tick || GOST
Overvoltage Category:
III IEC 60664-1
Output Contacts:
2 C/O
Operating Position:
any position without derating
Maximum Power Consumption In Va:
5 VA AC
Maximum Supply Current For Sensors:
1 mA
Circularity Profile:
ENVEOLI1504008EN
Relative Humidity:
95-95 % 55-55 °C IEC 60068-2-30
Operating Rate:
<= 360 operations/hour full load
Utilisation Category:
AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
Marking:
CE : 73/23/EEC || CE : EMC 89/336/EEC
Rohs Exemption Information:
Yes
China Rohs Regulation:
X
Ambient Air Temperature For Storage:
-40-70 °C
Pollution Degree:
3 IEC 60664-1
Relay Type:
level control relay
Contacts Type And Composition:
2 C/O
Reset Time:
1750 ms
Width:
35 mm
Maximum Switching Current:
5 A AC/DC
Supply Voltage Limits:
20.4-264 V AC/DC
Immunity To Microbreaks:
100 ms DC || 90 ms AC
Sustainable Offer Status:
Green Premium product
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Dielectric Test Voltage:
2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1
Measurement Range:
250 Ohm...1 MOhm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury Free:
Yes
Ambient Air Temperature For Operation:
-20-50 °C
Repeat Accuracy:
+/- 2 % time delay
Run-Up Delay At Power-Up:
0.6 s
Time Delay Type:
adjustable 0.1...5 s, +/- 10 % Tt- time delay upon fault
Product Or Component Type:
level control relay
Switching Capacity In Va:
1250 VA
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Ui] Rated Insulation Voltage:
250 V IEC 60664-1
Minimum Switching Current:
10 mA 5 V DC
Measurement Error:
0.5 %/°C with temperature variation
Ip Degree Of Protection:
IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
Housing Material:
self-extinguishing plastic
Maximum Switching Voltage:
250 V AC/DC
Sensitivity Adjustment:
5-100 %
Mounting Support:
35 mm symmetrical DIN rail conforming to IEC 60715
Insulation Resistance:
> 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay ou
Standards:
IEC 60255-6
Cable Capacitance:
1 nF HS (High Sensitivity) probe cable || 2.2 nF St (Standard Sensitivity) probe cable || 4.7 nF LS (Low Sensitivity)
