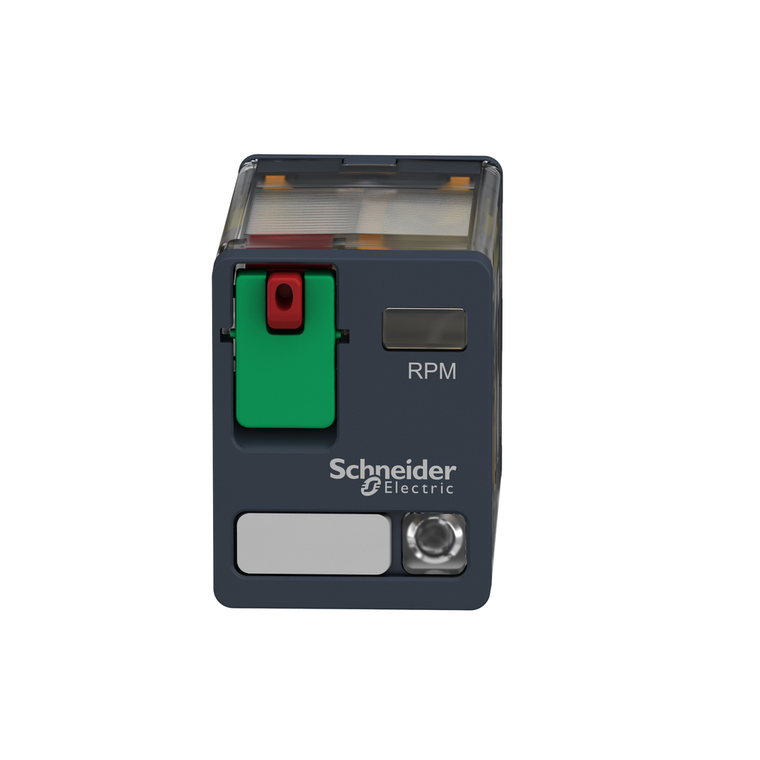

Schneider Electric RPM22B7 15A Power Relay Led 2C/O 24Vac Pack of 10
Schneider Electric
$83.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric RPM22B7 15A Power Relay Led 2C/O 24Vac Pack of 10
This Harmony RPM power plug-in relay has a coil control voltage of 24V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0
- Average Coil Consumption In Va:
- 1.1 60 Hz
- Circularity Profile:
- N/A
- Product Or Component Type:
- plug-in relay
- Sustainable Offer Status:
- Green Premium product
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Operating Position:
- any position
- Series Name:
- Power
- Test Levels:
- level A group mounting
- Operating Time:
- 20 ms at nominal voltage
- Utilisation Coefficient:
- 0.2
- Ambient Air Temperature For Storage:
- -40-85 °C
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Warranty:
- 18 months
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- Shock Resistance:
- 15 gnin operation || 30 gnnot operating
- Environmental Disclosure:
- ENVPEP1406038EN
- Average Resistance:
- 177 Ohm at 20 °C +/- 15 %
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- China Rohs Regulation:
- X
- Device Short Name:
- RPM
- Maximum Switching Capacity:
- 3750 VA || 420 W
- Maximum Switching Voltage:
- 250 V IEC
- Contacts Type And Composition:
- 2 C/O
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- [Ie] Rated Operational Current:
- 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
- Contacts Material:
- AgNi
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Device Presentation:
- complete product
- Protection Category:
- RT I
- Electrical Durability:
- 100000 cycles resistive
- Pollution Degree:
- 3
- Status Led:
- with
- Reset Time:
- 20 ms at nominal voltage
- Ambient Air Temperature For Operation:
- -40-55 °C
- Mechanical Durability:
- 10000000 cycles
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Safety Reliability Data:
- B10d = 100000
- Control Type:
- lockable test button
- Product Certifications:
- EAC || UL || CSA
- Reach Free Of Svhc:
- Yes
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Rated Operational Voltage Limits:
- 19.2...26.4 V AC
- [Ithe] Conventional Enclosed Thermal Current:
- 15 A -40-55 °C
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Load Current:
- 15 A 250 V AC || 15 A 28 V DC
- Range Of Product:
- Harmony Electromechanical Relays
- Net Weight:
- 0.036 kg
- Standards:
- UL 508 || CSA C22.2 No 14 || IEC 61810-1
- Rohs Exemption Information:
- Yes
- Shape Of Pin:
- flat
