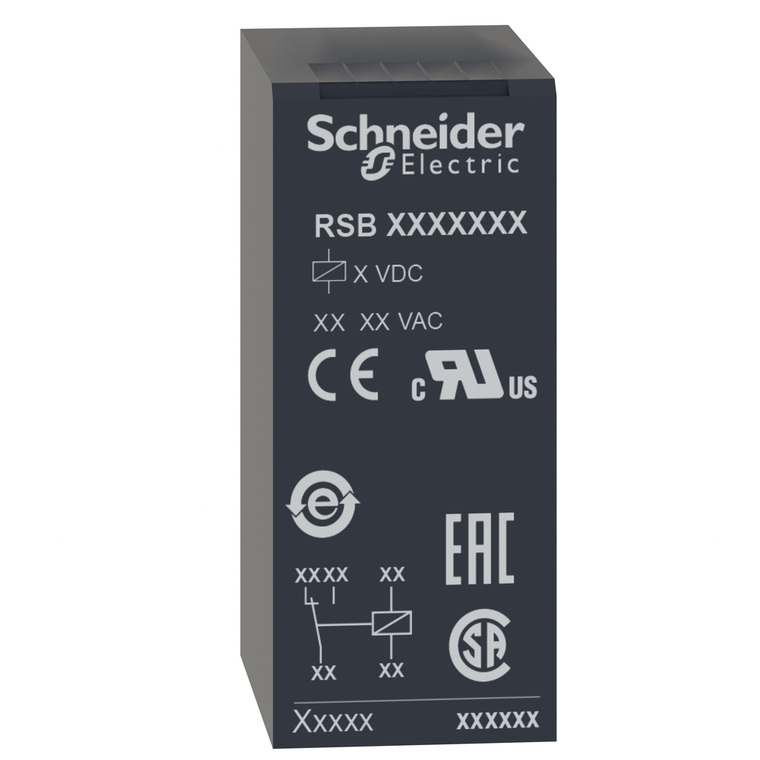

Schneider Electric RSB1A120U7 Pcb Relay 1C/O 12A 240Vac Pack of 10
Schneider Electric
$42.70
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RSB interfacing plug-in relay has a control coil voltage of 240V AC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0
- Electrical Durability:
- 100000 cycles, 12 A at 250 V, AC-1 NO || 100000 cycles, 6 A at 250 V, AC-1 NC
- Operating Rate:
- <= 600 cycles/hour under load || <= 18000 cycles/hour no-load
- Operating Time:
- 20 ms operating || 20 ms reset
- [Ithe] Conventional Enclosed Thermal Current:
- 12 A -40-40 °C
- Dielectric Strength:
- 1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
- Minimum Switching Current:
- 10 mA
- Vibration Resistance:
- +/- 1 mm 10-55 Hz)IEC 60068-2-6
- Test Levels:
- level A group mounting
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Sale Per Indivisible Quantity:
- 10
- Load Current:
- 12 A 250 V AC || 12 A 28 V DC
- Toxic Heavy Metal Free:
- Yes
- Average Resistance:
- 33000 Ohm AC 20 °C +/- 10 %
- Device Short Name:
- RSB
- Contact Operation:
- standard
- Status Led:
- without
- [Uc] Control Circuit Voltage:
- 240 V AC 50/60 Hz
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Contacts Material:
- silver alloy (AgNi)
- Safety Reliability Data:
- B10d = 100000
- Maximum Switching Capacity:
- 3000 VA/336 W
- Product Or Component Type:
- plug-in relay
- Environmental Disclosure:
- ENVPEP1406006EN
- [Ui] Rated Insulation Voltage:
- 400 V IEC 60947
- Ambient Air Temperature For Operation:
- -40-70 °C AC)
- Warranty:
- 18 months
- Contacts Type And Composition:
- 1 C/O
- Range Of Product:
- Harmony Electromechanical Relays
- [Uimp] Rated Impulse Withstand Voltage:
- 3.6 kV IEC 61000-4-5
- Device Presentation:
- complete product
- Marking:
- CE
- Net Weight:
- 0.014 kg
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Minimum Switching Capacity:
- 120 mW 10 mA, 12 V
- Circularity Profile:
- N/A
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Operating Position:
- any position
- Shape Of Pin:
- flat (PCB type)
- Shock Resistance:
- 10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Standards:
- UL 508 || CSA C22.2 No 14 || IEC 61810-1
- Control Type:
- without push-button
- [Ie] Rated Operational Current:
- 12 A AC-1/DC-1) NO IEC || 6 A AC-1/DC-1) NC IEC
- China Rohs Regulation:
- X
- Average Coil Consumption:
- 0.75 VA AC
- Mercury Free:
- Yes
- Switching Voltage:
- 12 V
- [Ue] Rated Operational Voltage:
- 192...360 V AC 50/60 Hz
- Product Certifications:
- CSA || UL || EAC
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Series Name:
- interface relay
- Ambient Air Temperature For Storage:
- -40-85 °C
- Maximum Switching Voltage:
- 300 V DC IEC
- Mechanical Durability:
- 10000000 cycles
- Protection Category:
- RT I
