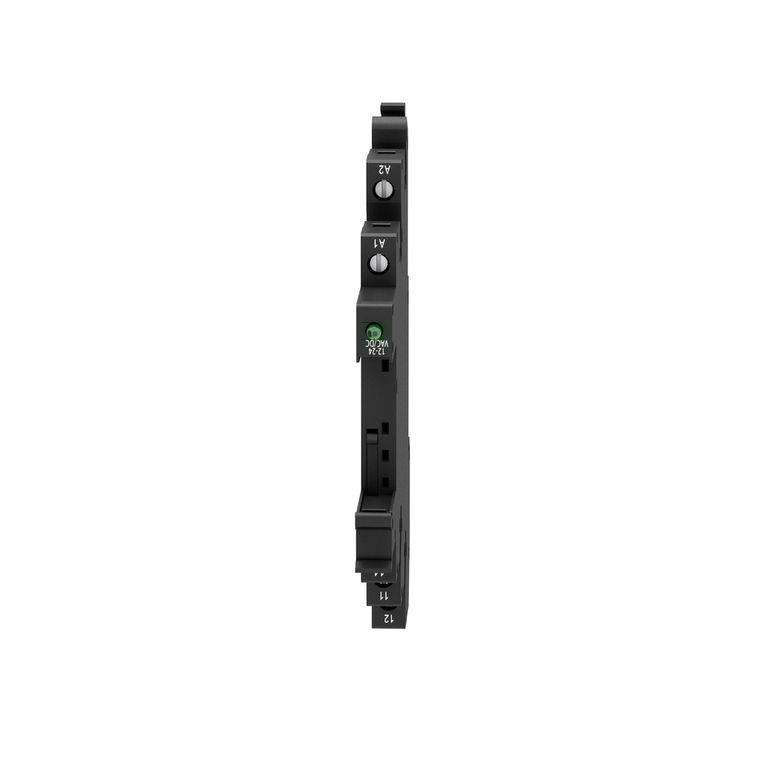

Schneider Electric RSLZVA1 Separated Socket Led 12-24Vac/Dc Screw Pack of 10

Schneider Electric RSLZVA1 Separated Socket Led 12-24Vac/Dc Screw

Schneider Electric
SKU:
RSLZVA1
|
UPC:
3606480078026
Availability:
Factory stock
$10.36
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony RSLZ plug-in relay socket has a coil control voltage of 12 - 24V AC/DC." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Additional Information
Standards:
IEC 61984 || UL 508
Cad Overall Depth:
95 mm
Ambient Air Temperature For Storage:
-40-85 °C
Ambient Air Temperature For Operation:
-40-70 °C
Overvoltage Category:
III
China Rohs Regulation:
X
Range Of Product:
Harmony Electromechanical Relays
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Rated Operational Voltage Limits:
11.4...14.4 V || 21.6...28.8 V
Group Of Product:
RSL_CON_12-24
Device Presentation:
basic element
Net Weight:
0.023 kg
[Uimp] Rated Impulse Withstand Voltage:
3.6 kV
Shape Of Pin:
flat
Tightening Torque:
< 0.4 N.m M2.5
Sustainable Offer Status:
Green Premium product
Pollution Degree:
3
Warranty:
18 months
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Type And Composition:
1 C/O
[Ith] Conventional Free Air Thermal Current:
0.25
Fixing Mode:
plastic compression spring 35 mm symmetrical DIN rail)
Product Or Component Type:
socket
Switching Voltage:
12 V AC/DC || 24 V AC/DC
Environmental Disclosure:
ENVPEP1405004EN
Product Certifications:
CSA || GOST
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Device Short Name:
RSLZ
Sale Per Indivisible Quantity:
10
Reach Free Of Svhc:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Circularity Profile:
ENVEOLI1405004EN
Rohs Exemption Information:
Yes
Compatibility Code:
RSLZ
Connections - Terminals:
connector, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || connector, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) solid without cable end
Cad Overall Height:
78.6 mm
Product Compatibility:
plug-in relay RSL 1 C/O 12 V DC || plug-in relay RSL 1 C/O 24 V DC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Contact Terminal Arrangement:
separate
Cad Overall Width:
6.2 mm
Marking:
CE
[Ue] Rated Operational Voltage:
< 300 V AC
