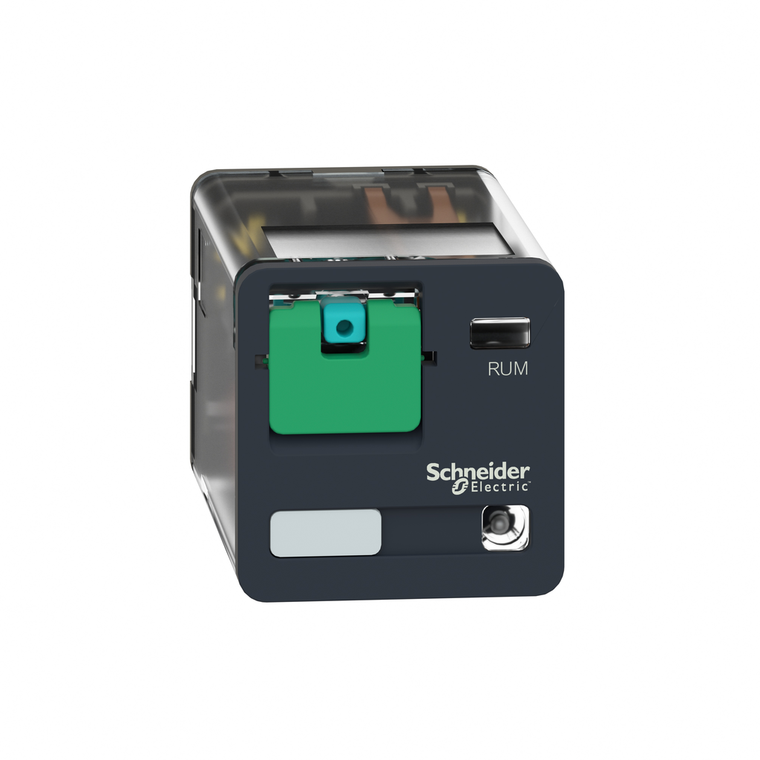

Schneider Electric RUMC22BD 2Co 10A Relay Cylind +Ltb+Led 24Vdc
Schneider Electric
$16.27
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 24V DC and has 2 changeover contacts double pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
- Net Weight:
- 0.086 kg
- [Uc] Control Circuit Voltage:
- 24 V DC
- Ambient Air Temperature For Storage:
- -40-85 °C
- Contacts Type And Composition:
- 2 C/O
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Sustainable Offer Status:
- Green Premium product
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Device Short Name:
- RUM
- Mechanical Durability:
- 5000000 cycles
- Maximum Switching Voltage:
- 250 V IEC
- Ambient Air Temperature For Operation:
- -40-55 °C
- Contacts Material:
- AgNi
- Standards:
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- Ip Degree Of Protection:
- IP40
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Pin:
- cylindrical
- Test Levels:
- level A group mounting
- Control Type:
- lockable test button
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Maximum Switching Capacity:
- 2500 VA/280 W
- Operating Rate:
- <= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
- Operating Position:
- any position
- Pollution Degree:
- 3
- Electrical Durability:
- 100000 cycles resistive
- Rated Operational Voltage Limits:
- 19.2...26.4 V DC
- Utilisation Coefficient:
- 0.2
- Circularity Profile:
- N/A
- Reach Free Of Svhc:
- Yes
- Operating Time:
- 20 ms at nominal voltage
- Device Presentation:
- complete product
- China Rohs Regulation:
- X
- Range Of Product:
- Harmony Electromechanical Relays
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Series Name:
- Universal
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Average Resistance:
- 470 Ohm 20 °C +/- 15 %
- Environmental Disclosure:
- ENVPEP1406038EN
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10 A at 250 V AC (NO) conforming to IEC || 10 A at 28 V D
- Product Certifications:
- EAC || UL || CSA
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Reset Time:
- 20 ms at nominal voltage
- Rohs Exemption Information:
- Yes
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Safety Reliability Data:
- B10d = 100000
- Protection Category:
- RT I
- Average Coil Consumption:
- 1.4 W
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Status Led:
- with
- Product Or Component Type:
- plug-in relay
