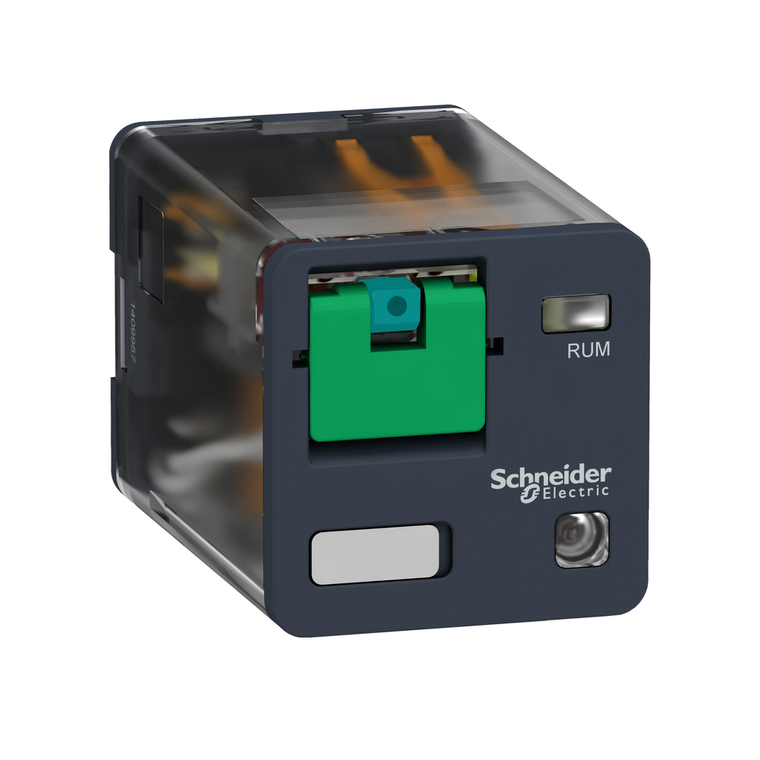

Schneider Electric RUMC32BD 3Co 10A Relay Cylind +Ltb+Led 24Vdc

Schneider Electric RUMC32BD 3Co 10A Relay Cylind +Ltb+Led 24Vdc

Schneider Electric
SKU:
RUMC32BD
|
UPC:
3606480626937
Availability:
Factory stock
$18.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 24V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Additional Information
Net Weight:
0.086 kg
Safety Reliability Data:
B10d = 100000
[Ithe] Conventional Enclosed Thermal Current:
10 A -40-55 °C
Product Certifications:
EAC || UL || CSA
Test Levels:
level A group mounting
Protection Category:
RT I
Environmental Disclosure:
ENVPEP1406038EN
Operating Position:
any position
Utilisation Coefficient:
0.2
Shape Of Pin:
cylindrical
Standards:
IEC 61810-1 || CSA C22.2 No 14 || UL 508
[Ie] Rated Operational Current:
10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ip Degree Of Protection:
IP40
Rohs Exemption Information:
Yes
Maximum Switching Capacity:
2500 VA/280 W
Electrical Durability:
100000 cycles resistive
Status Led:
with
Ambient Air Temperature For Operation:
-40-55 °C
Contacts Type And Composition:
3 C/O
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
China Rohs Regulation:
X
Rated Operational Voltage Limits:
19.2...26.4 V DC
Device Presentation:
complete product
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Device Short Name:
RUM
Control Type:
lockable test button
Maximum Switching Voltage:
250 V IEC
Operating Rate:
<= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
Dielectric Strength:
1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
Drop-Out Voltage Threshold:
>= 0.1 Uc DC
Circularity Profile:
N/A
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
Average Resistance:
470 Ohm 20 °C +/- 15 %
Mechanical Durability:
5000000 cycles
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Load Current:
10 A 250 V AC || 10 A 28 V DC
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs)
Contacts Material:
AgNi
Average Coil Consumption:
1.4 W
Ambient Air Temperature For Storage:
-40-85 °C
Range Of Product:
Harmony Electromechanical Relays
Product Or Component Type:
plug-in relay
[Uc] Control Circuit Voltage:
24 V DC
Reset Time:
20 ms at nominal voltage
Pollution Degree:
2
Shock Resistance:
10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
Minimum Switching Capacity:
170 mW 10 mA, 17 V
Reach Free Of Svhc:
Yes
Operating Time:
20 ms at nominal voltage
Series Name:
Universal
