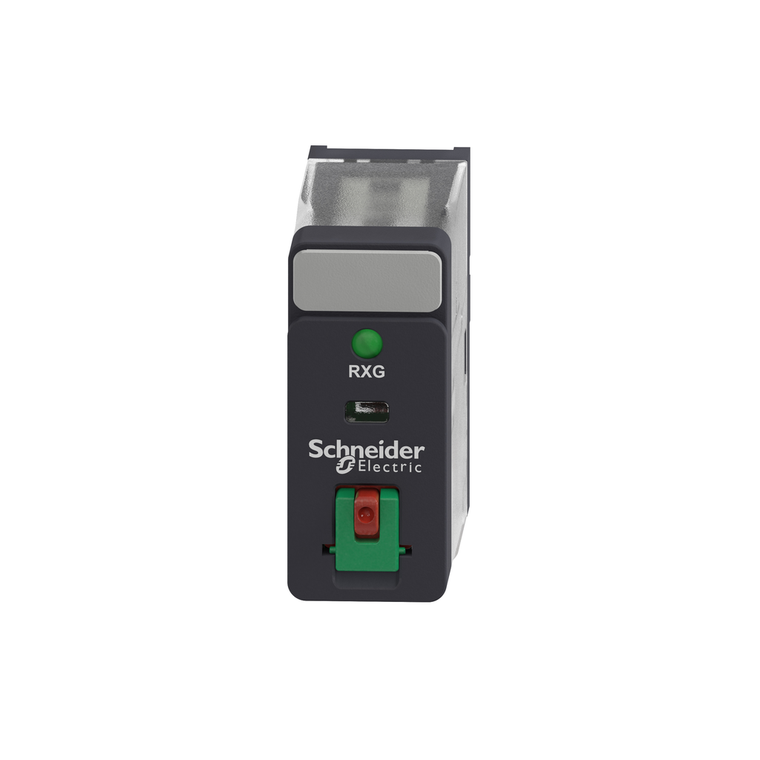

Schneider Electric RXG12BD 1Co 10A Relay +Ltb+Led 24Vdc
Schneider Electric
$8.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers lockable test button and LED indicator." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0 0
- China Rohs Regulation:
- X
- Minimum Switching Capacity:
- 500 mW at 100 mA, 5 V DC
- Device Presentation:
- complete product
- Electrical Durability:
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Shock Resistance:
- 20 gn in operation || 100 gn not in operation
- Mechanical Durability:
- 10000000 cycles
- Sustainable Offer Status:
- Green Premium product
- Standards:
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Vibration Resistance:
- 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
- Ambient Air Temperature For Storage:
- -40-85 °C
- Colour Of Cover:
- standard
- [Ie] Rated Operational Current:
- 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Device Short Name:
- RXG
- Operating Rate:
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- [Uc] Control Circuit Voltage:
- 24 V DC
- Environmental Disclosure:
- ENVPEP1406006EN
- Status Led:
- with
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Utilisation Coefficient:
- 0.2
- Ip Degree Of Protection:
- IP40
- Maximum Switching Voltage:
- 250 V AC || 30 V DC
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Local Signalling:
- flag
- Net Weight:
- 0.02 kg
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Maximum Switching Capacity:
- 2500 VA
- Ambient Air Temperature For Operation:
- -40-70 °C
- Product Or Component Type:
- plug-in relay
- Contacts Material:
- silver alloy (AgSnO2In2O3)
- Overvoltage Category:
- III
- Series Name:
- interface relay
- Protection Category:
- RT I
- Contacts Type And Composition:
- 1 C/O
- Test Levels:
- level A group mounting
- Range Of Product:
- Harmony Electromechanical Relays
- Toxic Heavy Metal Free:
- Yes
- Product Certifications:
- CSA || CE || EAC || UL || DNV-GL
- Load Current:
- 10 A 250 V AC
- Mounting Position:
- any position
- Mercury Free:
- Yes
- Pollution Degree:
- 2
- Control Type:
- lockable test button
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Torque Value:
- 0.8 N.m
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Relative Humidity:
- 10-85 %
- Resistance:
- 1100 Ohm +/- 10 %
- Dielectric Strength:
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Safety Reliability Data:
- B10d = 100000
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
