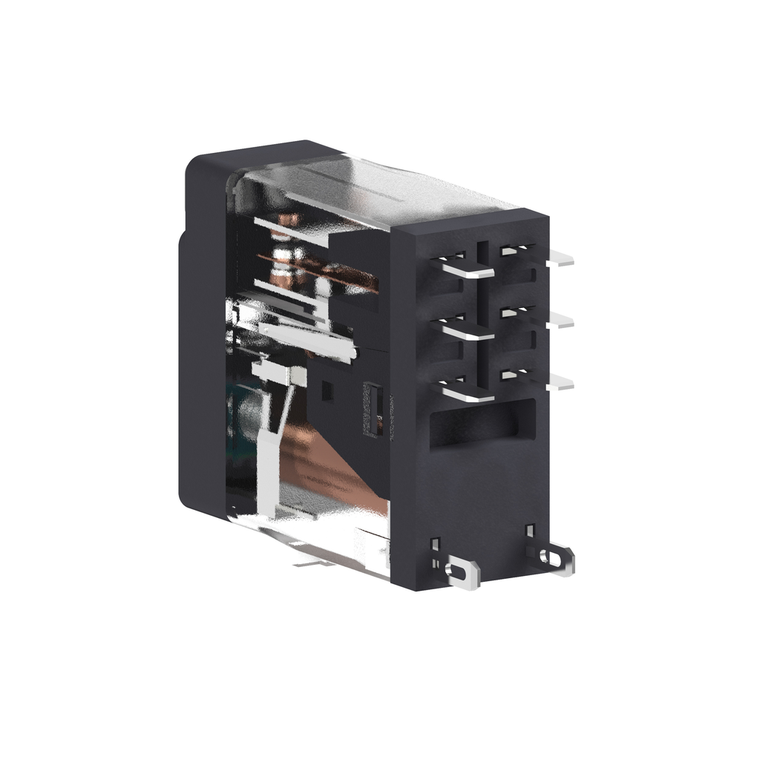

Schneider Electric RXG21RD 2Co 5A Relay +Ltb-Led 6Vdc Pack of 200
Schneider Electric
$1,642.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RXG plug-in relay socket has a coil control voltage of 6V DC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Mounting Position:
- any position
- Reach Free Of Svhc:
- Yes
- Shock Resistance:
- 20 gn in operation || 100 gn not in operation
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-85 °C
- Series Name:
- interface relay
- Product Certifications:
- CSA || CE || EAC || UL || DNV-GL
- Overvoltage Category:
- III
- Contacts Type And Composition:
- 2 C/O
- Mercury Free:
- Yes
- Mechanical Durability:
- 10000000 cycles
- Control Type:
- lockable test button
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Toxic Heavy Metal Free:
- Yes
- Range Of Product:
- Harmony Electromechanical Relays
- Load Current:
- 5 A 250 V AC
- Torque Value:
- 0.8 N.m
- Device Presentation:
- complete product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Test Levels:
- level A group mounting
- Safety Reliability Data:
- B10d = 100000
- [Ie] Rated Operational Current:
- 5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
- Maximum Switching Capacity:
- 1250 VA
- Maximum Switching Voltage:
- 250 V AC || 30 V DC
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Local Signalling:
- flag
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Standards:
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- [Uc] Control Circuit Voltage:
- 6 V DC
- Resistance:
- 68 Ohm +/- 10 %
- Electrical Durability:
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Product Or Component Type:
- plug-in relay
- Operating Rate:
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Contacts Material:
- silver alloy (AgSnO2In2O3)
- Utilisation Coefficient:
- 0.2
- Rohs Exemption Information:
- Yes
- Status Led:
- without
- Sustainable Offer Status:
- Green Premium product
- Device Short Name:
- RXG
- Ip Degree Of Protection:
- IP40
- Colour Of Cover:
- standard
- Protection Category:
- RT I
- Circularity Profile:
- N/A
- Minimum Switching Capacity:
- 50 mW at 10 mA, 5 V DC
- [Ithe] Conventional Enclosed Thermal Current:
- 5 A -40-55 °C
- Relative Humidity:
- 10-85 %
- Environmental Disclosure:
- ENVPEP1406006EN
- Pollution Degree:
- 2
- Net Weight:
- 0.02 kg
- Vibration Resistance:
- 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
- Dielectric Strength:
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
- Ambient Air Temperature For Operation:
- -40-70 °C
- China Rohs Regulation:
- X
