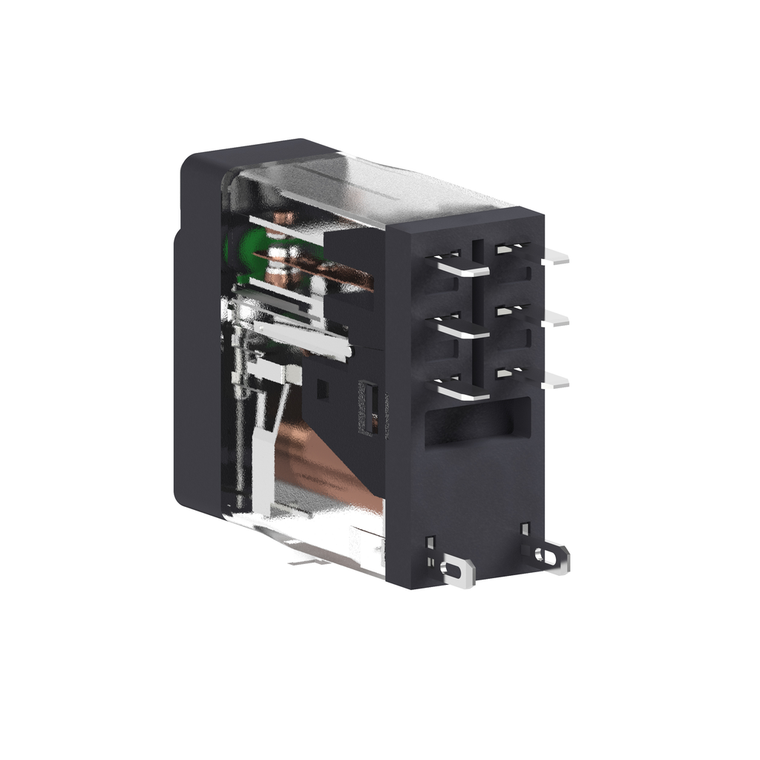

Schneider Electric RXG23F7 2Co 5A Relay-Ltb+Led 120Vac Pack of 10
Schneider Electric
$104.90
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RXG plug-in relay socket has a coil control voltage of 120V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Environmental Disclosure:
- ENVPEP1406006EN
- Series Name:
- interface relay
- Shock Resistance:
- 20 gn in operation || 100 gn not in operation
- Overvoltage Category:
- III
- Device Presentation:
- complete product
- Device Short Name:
- RXG
- Range Of Product:
- Harmony Electromechanical Relays
- Ip Degree Of Protection:
- IP40
- Vibration Resistance:
- 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
- Circularity Profile:
- N/A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- China Rohs Regulation:
- X
- Load Current:
- 5 A 250 V AC
- Utilisation Coefficient:
- 0.2
- [Ithe] Conventional Enclosed Thermal Current:
- 5 A -40-55 °C
- Contacts Type And Composition:
- 2 C/O
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Product Or Component Type:
- plug-in relay
- Electrical Durability:
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Status Led:
- with
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Minimum Switching Capacity:
- 50 mW at 10 mA, 5 V DC
- Safety Reliability Data:
- B10d = 100000
- Ambient Air Temperature For Operation:
- -40-70 °C
- Standards:
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Resistance:
- 6300 Ohm +/- 10 %
- Maximum Switching Capacity:
- 1250 VA
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Toxic Heavy Metal Free:
- Yes
- Relative Humidity:
- 10-85 %
- Pollution Degree:
- 2
- Protection Category:
- RT I
- Ambient Air Temperature For Storage:
- -40-85 °C
- Mechanical Durability:
- 10000000 cycles
- Colour Of Cover:
- standard
- Maximum Switching Voltage:
- 250 V AC || 30 V DC
- Reach Free Of Svhc:
- Yes
- [Ie] Rated Operational Current:
- 5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
- Control Circuit Voltage Limits:
- 0.8...1.1 Uc AC
- Test Levels:
- level A group mounting
- Torque Value:
- 0.8 N.m
- Local Signalling:
- flag
- Contacts Material:
- silver alloy (AgSnO2In2O3)
- Product Certifications:
- CE || CSA || UL || EAC || DNV-GL
- Dielectric Strength:
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
- Drop-Out Voltage Threshold:
- >= 0.3 Uc AC
- Sustainable Offer Status:
- Green Premium product
- [Uc] Control Circuit Voltage:
- 120 V AC 50/60 Hz
- Operating Rate:
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Mercury Free:
- Yes
- Average Consumption:
- 0.82 VA 60 Hz
- Net Weight:
- 0.02 kg
- Mounting Position:
- any position
