Schneider Electric RXM4GB2E7 Miniature Relay Led 4C/O Low Sw 48Vac Pack of 10
Schneider Electric
$146.90
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

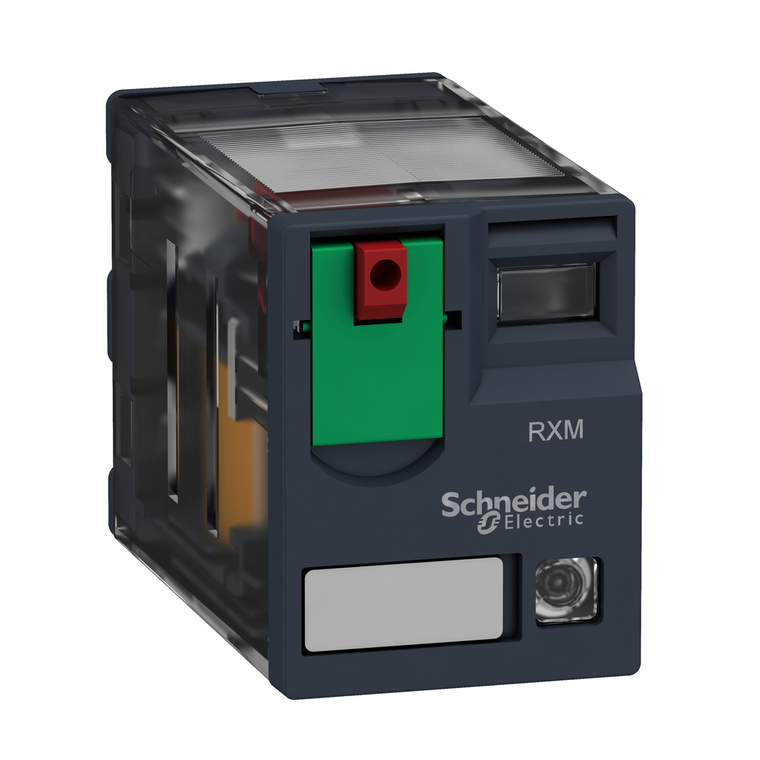

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay (gold plated contact) with current rating of 3A, control circuit voltage of 48 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor control, PLC Interfaces, power supplies, building equipment, especially those requiring low level contacts. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
- Shape Of Pin:
- flat
- Dielectric Strength:
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
- [Uc] Control Circuit Voltage:
- 48 V AC 50/60 Hz
- [Ithe] Conventional Enclosed Thermal Current:
- 3 A -40-55 °C
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- Reset Time:
- 20 ms
- China Rohs Regulation:
- X
- Drop-Out Voltage Threshold:
- >= 0.15 Uc
- Electrical Durability:
- 100000 cycles resistive depending on mounting position and working environment
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Test Levels:
- level A group mounting
- Status Led:
- with
- Circularity Profile:
- ENVEOLI2106019EN
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV 1.2/50 µs
- Series Name:
- Miniature
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Or Component Type:
- plug-in relay
- Contacts Type And Composition:
- 4 C/O
- Device Presentation:
- complete product
- Load Current:
- 3 A 250 V AC || 3 A 28 V DC
- Pollution Degree:
- 2
- Ambient Air Temperature For Storage:
- -40-85 °C
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Utilisation Coefficient:
- 0.2
- Ambient Air Temperature For Operation:
- -40-55 °C
- Product Certifications:
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Operating Position:
- any position
- [Ie] Rated Operational Current:
- 2 A 28 V DC) NO IEC || 2 A 250 V AC) NO IEC || 1 A 28 V DC) NC IEC || 1 A 250 V AC) NC IEC || 3 A 28 V DC) UL || 3 A 277 V AC) UL
- Control Type:
- lockable test button
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Minimum Switching Capacity:
- 15 mW 3 mA, 5 V
- Environmental Disclosure:
- ENVPEP2106019EN
- Net Weight:
- 0.037 kg
- Average Resistance:
- 710 Ohm 20 °C +/- 15 %
- Device Short Name:
- RXM
- Maximum Switching Voltage:
- 250 V IEC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Maximum Switching Capacity:
- 750 VA/84 W
- Mechanical Durability:
- 10000000 cycles
- Warranty:
- 18 months
- Average Consumption:
- 1.2 VA 60 Hz
- Rated Operational Voltage Limits:
- 38.4...52.8 V AC
- Contacts Material:
- gold plated bifurcated silver
- Standards:
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Protection Category:
- RT I
- Operating Time:
- 20 ms
- Range Of Product:
- Harmony Electromechanical Relays
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Average Coil Consumption In Va:
- 1.2-1.2 60 Hz
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
