Schneider Electric S29392 Circuit Breaker Shunt Trip 48V Dc
Schneider Electric
$717.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

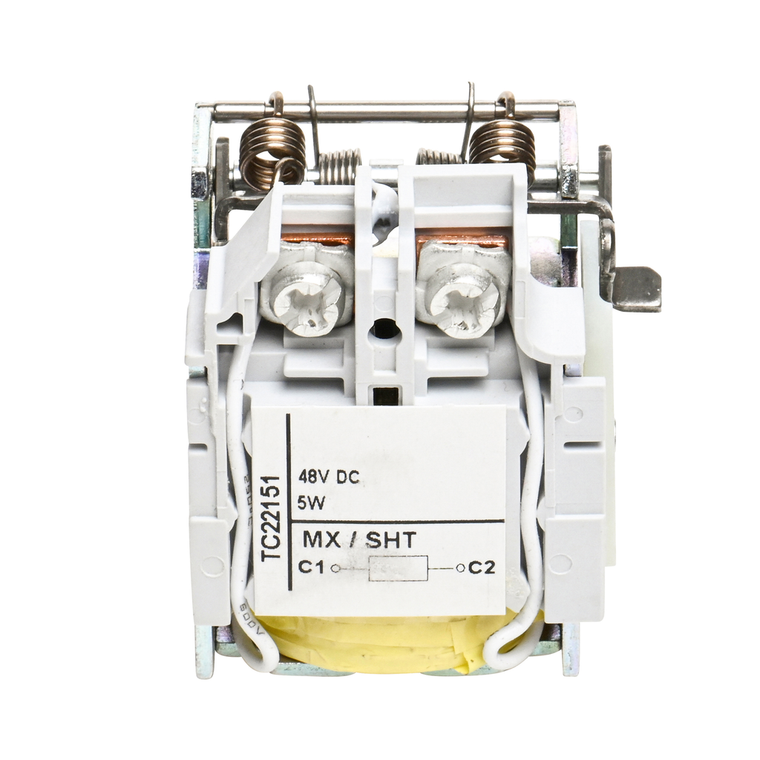

Schneider Electric S29392 Circuit Breaker Shunt Trip 48V Dc
This is a trip unit accessory for PowerPact H, J, L-Frame circuit breakers. This shunt trip has a rated voltage of 48 VDC. This accessory complies with CSA standards. This trip unit requires a tightening torque of 1.4-1.4 Nm, with a cable cross section of 0.82-2.5 mm², and an AWG gauge of AWG 18 / AWG 14.
- Eu Rohs Directive:
- Compliant with Exemptions
- Mercury Free:
- Yes
- Product Or Component Type:
- shunt trip
- Range Of Product:
- PowerPact H || PowerPact J || PowerPact L
- Tightening Torque:
- 1.4-1.4 N.m 0.82-2.5 mm² (AWG 18...AWG 14)
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Certifications:
- CSA
- Rated Voltage:
- 48-48 V DC
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
