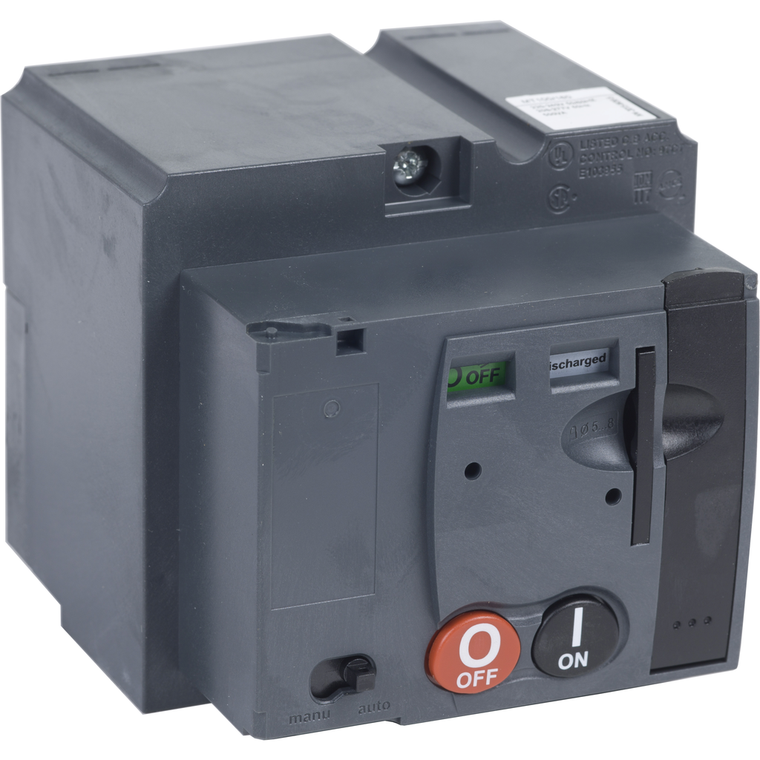

Schneider Electric S29434 Cb Motor Operator 208-277V Ac
Schneider Electric
$1,741.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Square D PowerPact H, J and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame breakers are performed only with Micrologic electronic units The motor operator remotely operates the circuit breaker featuring easy and sure operation This field installable Motor operator with rated voltage of 208/277VAC 60Hz is for use with PowerPacT H-frame ciruit breakers. This accessory provides double insulation front face, suitability for isolation and remains padlocking possible along with all visible circuit breacer indications and information such as trip unit settings and circuit breaker condition.
- Product Or Component Type:
- motor mechanism
- Circularity Profile:
- ENVEOLI1109011EN
- Product Certifications:
- UL Listed || CSA
- Environmental Disclosure:
- ENVPEP110911EN
- Device Application:
- control
- [Uc] Control Circuit Voltage:
- 277 V AC 60 Hz
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Range Of Product:
- PowerPact H
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free:
- Yes
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
