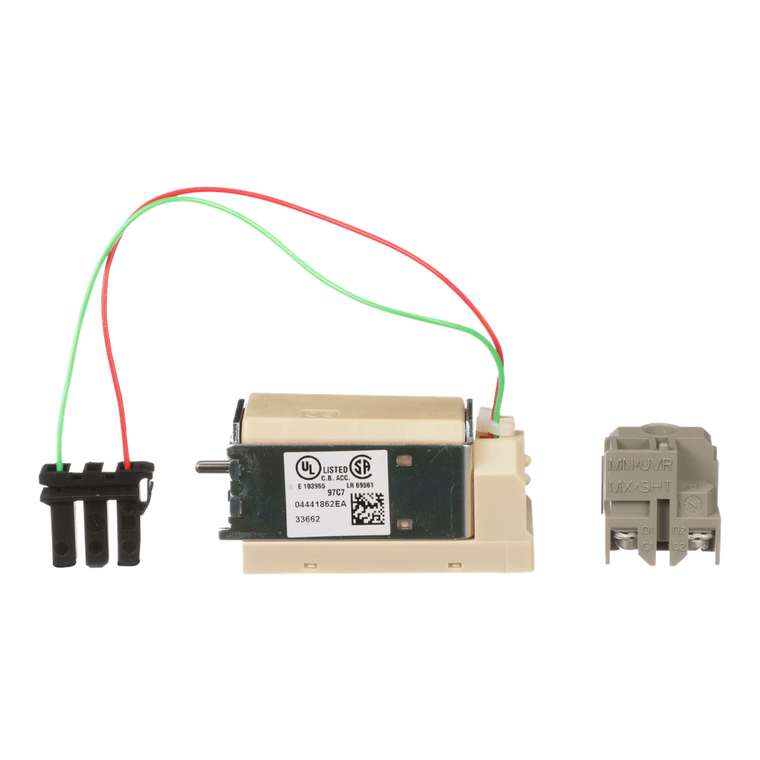

Schneider Electric S33662 Cb Shunt Trip 200-250V Ac/Dc

Schneider Electric S33662 Cb Shunt Trip 200-250V Ac/Dc

Schneider Electric
SKU:
S33662
|
UPC:
785901899136
Availability:
Contact us to confirm availability and lead times.
$755.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPact M-frame molded case circuit breakers provide improved performance and a compact solution for applications up to 800A. They complement the existing PowerPact P- and R-frame circuit breakers and replace the traditional MA/MH circuit breakers with a smaller footprint and competitive cost. PowerPact M-frame molded case circuit breakers have built-in electronic trip unit type ET 1.0 provides better accuracy than standard thermal-magnetic trip units. The ET 1.0 trip unit cannot be field replaced, nor does it allow adjustment of the trip point setting. (It is considered an electronic equivalent of a thermal-magnetic circuit breaker.) They also have fIxed long-time and adjustable instantaneous protection (2 to 10 times nominal ampere rating) is standard. Powerpact M-Frame breakers have the same dimensions, common mounting, bussing, cabling and door cut-out as PowerPact P-frame circuit breakers. This Powerpact M,P,R shunt trip is rated at 220-240 VAC and 250 VDC. This product comes with an 18 month warranty.
Additional Information
Circularity Profile:
ENVEOLI2307032EN
Product Or Component Type:
shunt trip
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Range Of Product:
PowerPact M || PowerPact P || PowerPact R
Tightening Torque:
3.5-3.5 N.m
Eu Rohs Directive:
Compliant with Exemptions
Product Certifications:
CSA
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Warranty:
18 months
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Rated Voltage:
220-240 V AC || 250-250 V DC
Environmental Disclosure:
ENVPEP2307032EN
