Schneider Electric SD328BU25S2 Lexium Stepperdrive ( Pulse/Dir, Pbdp, R
$1,272.31
Schneider Electric
Schneider Electric SD328BU68S2 Lexium Stepperdrive ( Pulse/Dir, Pbdp,Rm
Schneider Electric
$1,388.19
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

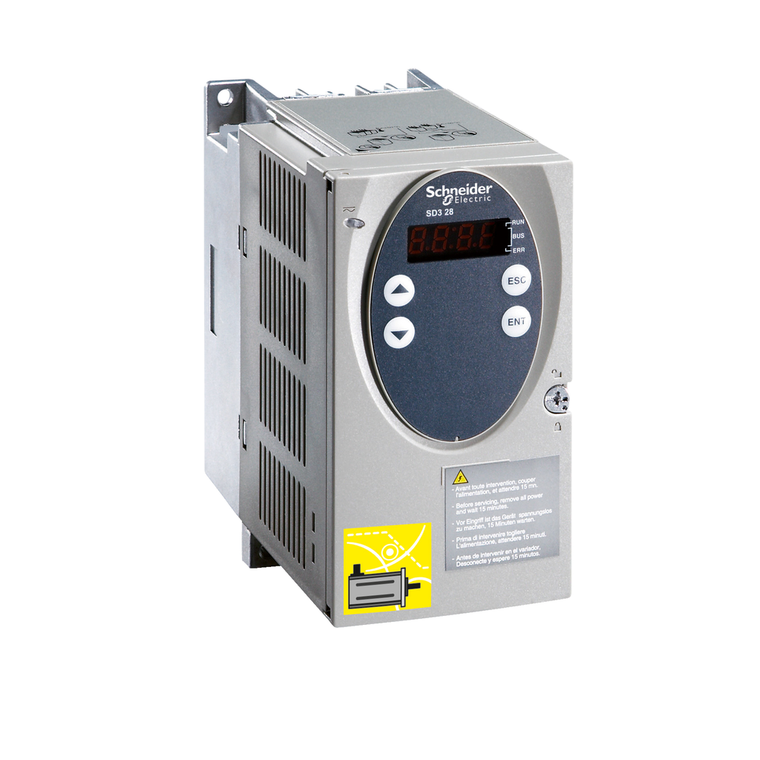

Schneider Electric SD328BU68S2 Lexium Stepperdrive ( Pulse/Dir, Pbdp,Rm
This product is part of the Lexium SD3 range, an offer of stepper motors for motion control. The 3-phase stepper motor drive with an integrated Profibus DP Fieldbus communication interface. It is a motor drive with a rated supply voltage of 100V to 120V, 200V to 230V, a maximum motor phase current of 2.5A, a nominal power of 180W at 115V, 270W at 230V. It features fan cooling. The maximum mechanical speed of motor drive is 3000RPM. It is an IP20 and IP40 rated product. Its dimensions are 72mm (width) x 140mm (depth) x 145mm (height). It weighs 1.2kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, food and beverage applications. This product is certified by CE. CUL, TUV and UL. It meets EN/IEC 61800-5-1, EN/IEC 61800-3 environment 1/2, EN/IEC 61800-3 and EN/IEC 50178 standards. The SD3 is a universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Lexium SD3, three-phase range up to 19.7Nm with high accuracy and high torque at low rotation speeds.
- Standards:
- IEC 61800-3 environment 1 || IEC 61800-5-1 || EN/IEC 61800-3 environment 2 || IEC 61800-3 || IEC 50178
- Phase:
- single phase
- Voltage State 1 Guaranteed:
- 15...30 V 24 V input signals
- Ip Degree Of Protection:
- IP20 || on upper part: IP40 (without removal of protective film)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Maximum Motor Phase Current:
- 6.8 A
- Warranty:
- 18 months
- Associated Fuse Rating:
- 10 A 115 V || 6 A 230 V
- Depth:
- 140 mm
- Supply Voltage Limits:
- 200-240 V || 100-120 V
- Maximum Mechanical Speed:
- 3000 rpm
- Mercury Free:
- Yes
- Product Certifications:
- TÃV || cUL || UL
- Safety Function:
- safe torque off safety function machine IEC/EN 61800-5-2 || safe torque off safety function machine ISO 13849-1 level d || safe torque off safety function system process EN/IEC 61508 level SIL2 || safe torque off safety function system process IEC/EN
- Ambient Air Temperature For Storage:
- -25-70 °C
- Power Losses:
- <= 65 W
- Relative Humidity:
- 5-85 % without condensation
- Communication Interface:
- Profibus DP fieldbus, Integrated
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Pvc Free:
- Yes
- Input Voltage:
- 24 V -15 %/+20 % 24 V control voltage
- Environmental Disclosure:
- ENVPEP111115EN
- Device Short Name:
- SD328
- Supply Voltage Type:
- AC/DC
- Overvoltage Category:
- III
- Maximum Input Frequency:
- 200 kHz signal input ENC_A, ENC_B, ENC_I pulse/direction || 400 kHz signal input ENC_A, ENC_B, ENC_I A/B
- Input Current:
- 10 mA 24 V input signals
- Short-Circuit Current:
- 0.5 kA
- Maximum Output Frequency:
- 400 kHz pulse/direction interface A/B || 200 kHz pulse/direction interface pulse/direction
- Width:
- 72 mm
- Maximum Leakage Current:
- 30 mA <10 m IEC 60990-3
- Net Weight:
- 1.2 kg
- Ambient Air Temperature For Operation:
- 0-50 °C
- Format Of The Drive:
- block
- Inrush Current:
- 60 A
- Range Of Product:
- Lexium SD3
- Nominal Power:
- 280 W 115 V || 420 W 230 V
- [Us] Rated Supply Voltage:
- 100...120 V - 15...10 % || 200...230 V - 15...10 %
- Current Consumption:
- 5 A 230 V main supply || 7 A 115 V main supply || <= 0.2 mA 24 V control voltage
- Sustainable Offer Status:
- Green Premium product
- Maximum Switching Current:
- 50 mA 24 V output signals)
- Network Frequency Limits:
- 50-60 Hz - 15...10 %)
- Maximum Voltage Drop:
- <1 V 50 mA load 24 V output signals
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Resistance:
- 5 kOhm pulse/direction interface)
- Bus Type:
- fieldbus
- Physical Interface:
- RS422 - pulse/direction interface || RS422 - signal input ENC_A, ENC_B, ENC_I
- Output Voltage:
- <= 30 V 24 V output signals) || 4.75...5.25 V ENC+5V_OUT signal output)
- Type Of Cooling:
- fan
- Voltage State 0 Guaranteed:
- -3...5 V 24 V input signals
- Electromagnetic Compatibility:
- electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || voltage/current impulse level 3 IEC 61000-4-5
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Circularity Profile:
- ENVEOLI111103EN
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
- Residual Ripple:
- < 5 % 24 V control voltage)
- Height:
- 145 mm
- Vibration Resistance:
- 1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm 3-13 Hz)IEC 60068-2-6
- Marking:
- CE
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- motion stepper drive
- China Rohs Regulation:
- X
- Pollution Degree:
- level 2
- Catalog:
- View
- Datasheet:
- View
-
-
