1.4 N.m 115 V single phase || 1.4 N.m 230 V single phase || 1.1 N.m 400 V three phase || 1.1 N.m 480 V three phase
Circle Diameter Of The Mounting Holes:
82 mm
Pvc Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Stator Inductance:
60.25 mH
Environmental Disclosure:
ENVPEP111049EN
Rotor Inertia:
0.322 kg.cm²
Torque Constant:
0.69 N.m/A 120 °C
Back Emf Constant:
46 V/krpm 20 °C
Product Or Component Type:

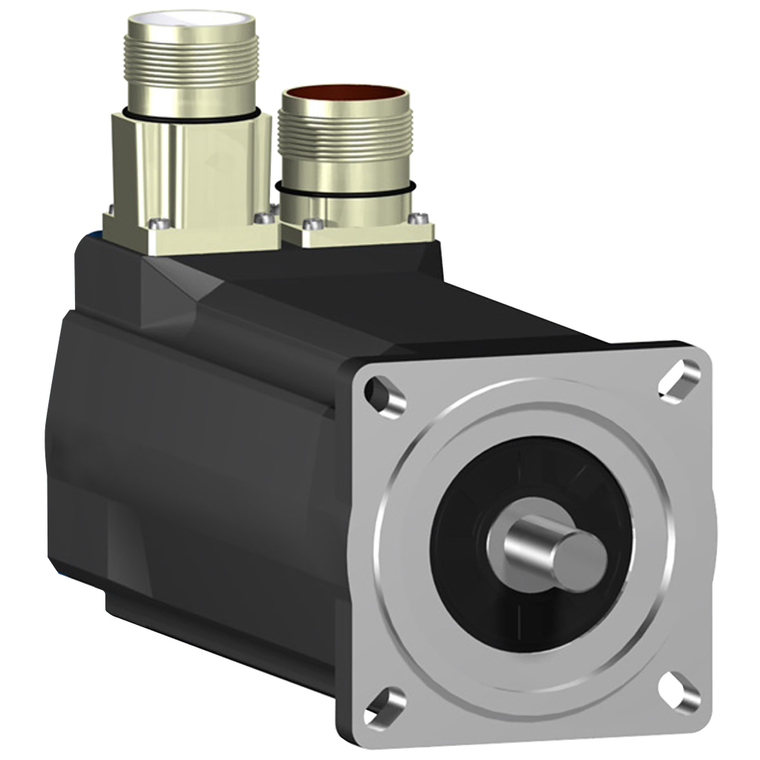

servo motor
Speed Feedback Resolution:
128 periods
Number Of Motor Poles:
3
Type Of Cooling:
natural convection
Key Width:
4 mm
Nominal Speed:
1500 rpm 115 V single phase || 3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase
Holding Brake:
with
Maximum Radial Force Fr:
660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm
Maximum Current Irms:
5.7 A
Continuous Stall Torque:
1.25 N.m 115...480 V three phase
Motor Flange Size:
70 mm
Rohs Exemption Information:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Number Of Mounting Holes:
4
Length:
179.5 mm
Centring Collar Depth:
2.5 mm
Mercury Free:
Yes
Peak Stall Torque:
3.5 N.m 115...480 V three phase
Circularity Profile:
N/A
Shaft End:
parallel key
Holding Torque:
3 N.m
Phase:
three phase
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mounting Holes Diameter:
5.5 mm
China Rohs Regulation:
X
Continuous Power:
690 W
Shaft Diameter:
11 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
