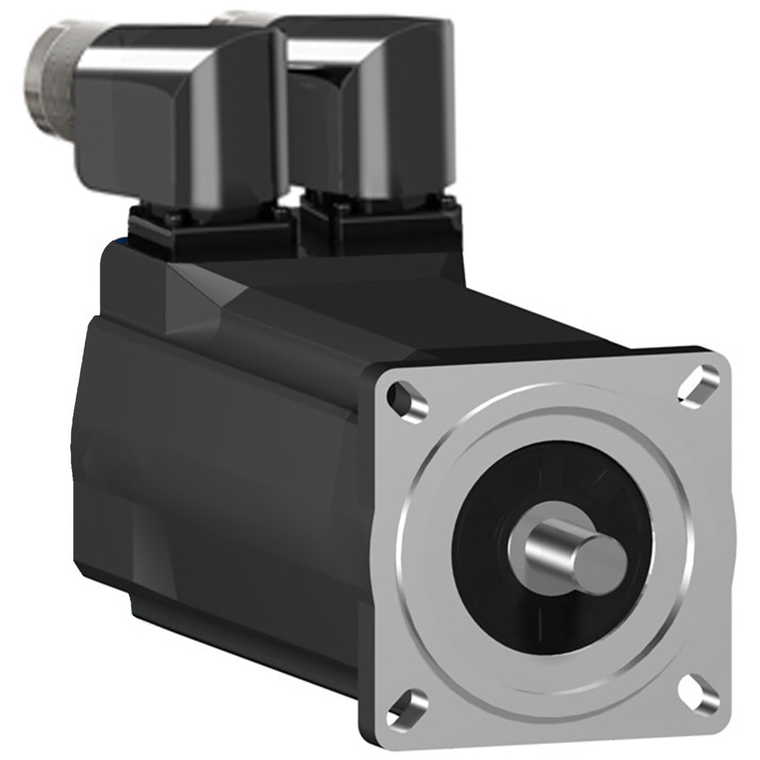

Schneider Electric SH30702P12A2200 Sh3 Motor 070.2 Key Mlt Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH30702P12A2200 Sh3 Motor 070.2 Key Mlt Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH30702P12A2200

UPC:

3.60649E+12

MPN:

Condition:

New

Availability:

Schneider orders under $1250 will incur a $60 processing fee at checkout

Maximum Mechanical Speed:

8000 rpm

Key Width:

4 mm

[Us] Rated Supply Voltage:

115...480 V

Stator Inductance:

29.65 mH

Mercury Free:

Yes

Shaft Length:

23 mm

Maximum Axial Force Fa:

80 N

Motor Flange Size:

70 mm

Mounting Support:

international standard flange

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Number Of Motor Poles:

3

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Number Of Mounting Holes:

4

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5

Shaft End:

parallel key

Length:

187 mm

Continuous Stall Torque:

2.04 N.m 115...480 V three phase

Torque Constant:

0.7 N.m/A 120 °C

Maximum Current Irms:

11.8 A

Product Or Component Type:

servo motor

Maximum Radial Force Fr:

710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm || 410 N 5000 rpm || 390 N 6000 rpm

China Rohs Regulation:

X

Peak Stall Torque:

7.6 N.m 115...480 V three phase

Continuous Stall Current:

2.9 A

Net Weight:

2.8 kg

Rotor Inertia:

0.41 kg.cm²

Mounting Holes Diameter:

5.5 mm

Sustainable Offer Status:

Green Premium product

Centring Collar Diameter:

60 mm

Nominal Torque:

2.15 N.m 115 V single phase || 2.1 N.m 230 V single phase || 1.8 N.m 400 V three phase || 1.8 N.m 480 V three phase

Warranty:

18 months

Back Emf Constant:

48 V/krpm 20 °C

Continuous Power:

1130 W

Circle Diameter Of The Mounting Holes:

82 mm

Device Short Name:

SH3.....P

Nominal Speed:

1500 rpm 115 V single phase || 3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase

Stator Resistance:

4.2 Ohm

Environmental Disclosure:

ENVPEP111049EN

Nominal Output Power:

340 W 115 V single phase || 660 W 230 V single phase || 1190 W 400 V three phase || 1360 W 480 V three phase

Circularity Profile:

N/A

Range Compatibility:

PacDrive 3

Centring Collar Depth:

2.5 mm

Shaft Diameter:

11 mm

Encoder Type:

absolute multiturn SinCos Hiperface

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Type Of Cooling:

natural convection

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Connection:

straight connector

Pvc Free:

Yes

Holding Brake:

without

Speed Feedback Resolution:

128 periods

Phase:

three phase
