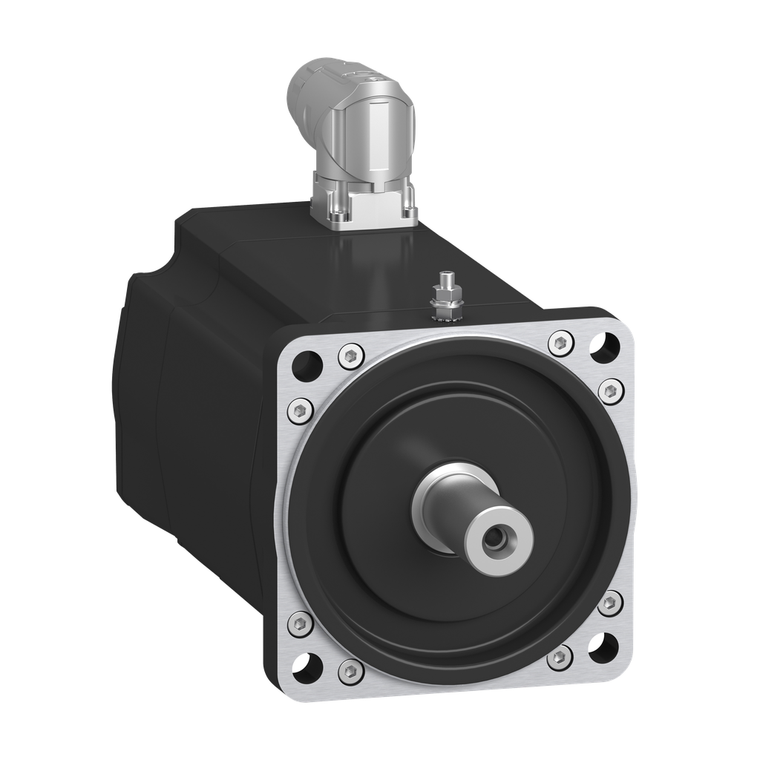

Schneider Electric SH31001P0AA4000 Sh3 Motor 100.1 Sgl Omc Ang Ip54

Schneider Electric SH31001P0AA4000 Sh3 Motor 100.1 Sgl Omc Ang Ip54

Schneider Electric
SKU:
SH31001P0AA4000
|
UPC:
3.60648E+12
$1,695.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Lexium SH3 Servo motors are designed to fit Lexium 62 and Lexium 52 servo drives, part of PacDrive 3, an automation solution for motion centric machines. The servo motor features maximum mechanical speed of 6000RPM and smooth shaft end without holding brake. It is equipped with an absolute single turn Hiperface (DSL 18bit, EKS36) encoder. It figures as single angular turntable connector (One motor cable connectivity) for connecting a hybrid cable (DSL cable with quick lock connector). It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 21.3A and a continuous power of 4040W. Shaft end is an IP54 rated, casing is an IP65 rated. The flange size is 70mm, it is fixed by 4x 9mm holes. The circle diameter of the mounting holes is 115mm. it weighs 4.3kg. SH3 servo motors with Lexium 62 multi axis servo drives meet the requirements of production and packaging machinery, material handling and assembly systems. Lexium SH3 servo motors are UL UR and conform to UL1004 as well as European directives CE and UKCA. This SH3 servo motor figuring One-Motor Cable connectivity is compatible with a Lexium 62 servo drive. All mounting positions are permitted (horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7. Lexium SH3 motors are prime solution to the need for dynamic performance, covering a continuous stall torque range (0.2 to 94.4Nm) for speeds up to 9000 rpm. Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions.
Additional Information
Shaft End:
smooth shaft
Nominal Output Power:
690 W 230 V single phase || 1190 W 400 V three phase || 1190 W 480 V three phase
Back Emf Constant:
60 V/krpm 20 °C
Stator Inductance:
19 mH
Length:
168.5 mm
Holding Brake:
without
Continuous Power:
1190 W
Number Of Mounting Holes:
4
Phase:
three phase
Sustainable Offer Status:
Green Premium product
Device Short Name:
SH3.....P
Nominal Torque:
2.64 N.m 230 V single phase || 2.27 N.m 400 V three phase || 2.27 N.m 480 V three phase
Centring Collar Depth:
3.5 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Continuous Stall Torque:
2.94 N.m 115...480 V three phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury Free:
Yes
Continuous Stall Current:
3.5 A
Circle Diameter Of The Mounting Holes:
115 mm
Nominal Speed:
2500 rpm 230 V single phase || 5000 rpm 400 V three phase || 6000 rpm 480 V three phase
Mounting Holes Diameter:
9.0 mm
Environmental Disclosure:
ENVPEP111049EN
Number Of Motor Poles:
4
Speed Feedback Resolution:
262144 points/turn
Rohs Exemption Information:
Yes
Maximum Axial Force Fa:
300 N
Product Or Component Type:
servo motor
Range Compatibility:
PacDrive 3
Circularity Profile:
N/A
Maximum Current Irms:
0
[Us] Rated Supply Voltage:
115...480 V
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation:
X
Torque Constant:
0.84 N.m/A 120 °C
Shaft Length:
40 mm
Maximum Radial Force Fr:
1530 N 2000 rpm || 1340 N 3000 rpm || 1930 N 1000 rpm
Rotor Inertia:
1.40 kg.cm²
Electrical Connection:
rotatable right angled connector
Type Of Cooling:
natural convection
Peak Stall Torque:
9.6 N.m 115...480 V three phase
Mounting Support:
international standard flange
Motor Flange Size:
100 mm
Net Weight:
4.3 kg
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Encoder Type:
absolute single turn Hiperface DSL
Shaft Diameter:
19 mm
Maximum Mechanical Speed:
6000 rpm
Stator Resistance:
3.8 Ohm
Centring Collar Diameter:
95 mm
Pvc Free:
Yes
Catalog:
View
Datasheet:
View
