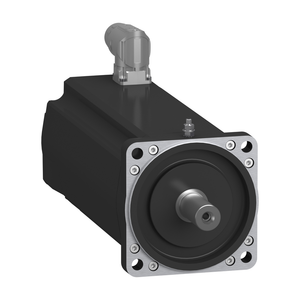

Schneider Electric SH31003P1BA4000 Sh3 Motor 100.3 Key Mlt Omc Ang Ip54

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SH31003P1BA4000 Sh3 Motor 100.3 Key Mlt Omc Ang Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31003P1BA4000

UPC:

3606481804570

MPN:

Condition:

New

Shaft Length:

40 mm

Key Width:

6 mm

Centring Collar Diameter:

95 mm

Speed Feedback Resolution:

262144 points/turn x 4096 turns

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Length:

240.5 mm

Nominal Output Power:

1470 W 230 V single phase || 2390 W 400 V three phase || 2390 W 480 V three phase

Rohs Exemption Information:

Yes

Circularity Profile:

N/A

Shaft Diameter:

19 mm

Rotor Inertia:

3.22 kg.cm²

Nominal Speed:

2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Maximum Current Irms:

28.3 A

Centring Collar Depth:

3.5 mm

Mounting Support:

international standard flange

Encoder Type:

absolute multiturn Hiperface DSL

Stator Inductance:

9.4 mH

Holding Brake:

without

Type Of Cooling:

natural convection

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Or Component Type:

servo motor

Peak Stall Torque:

28.3 N.m 115...480 V three phase

Nominal Torque:

7 N.m 230 V single phase || 5.7 N.m 400 V three phase || 5.1 N.m 480 V three phase

Maximum Axial Force Fa:

740 N

Continuous Power:

2400 W

Pvc Free:

Yes

Shaft End:

parallel key

Circle Diameter Of The Mounting Holes:

115 mm

Sustainable Offer Status:

Green Premium product

Phase:

three phase

Back Emf Constant:

77 V/krpm 20 °C

Mounting Holes Diameter:

9.0 mm

Continuous Stall Torque:

8 N.m 115...480 V three phase

Maximum Radial Force Fr:

3570 N 2000 rpm || 3120 N 3000 rpm || 4500 N 1000 rpm

Device Short Name:

SH3.....P

Torque Constant:

1.22 N.m/A 120 °C

Number Of Motor Poles:

4

Net Weight:

7.5 kg

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5

Range Compatibility:

PacDrive 3

Environmental Disclosure:

ENVPEP111049EN

Electrical Connection:

rotatable right angled connector

Stator Resistance:

1.43 Ohm

Mercury Free:

Yes

China Rohs Regulation:

X

[Us] Rated Supply Voltage:

115...480 V

Continuous Stall Current:

6.6 A

Motor Flange Size:

100 mm

Maximum Mechanical Speed:

6000 rpm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Number Of Mounting Holes:

4

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Catalog:

View

Datasheet:

View
