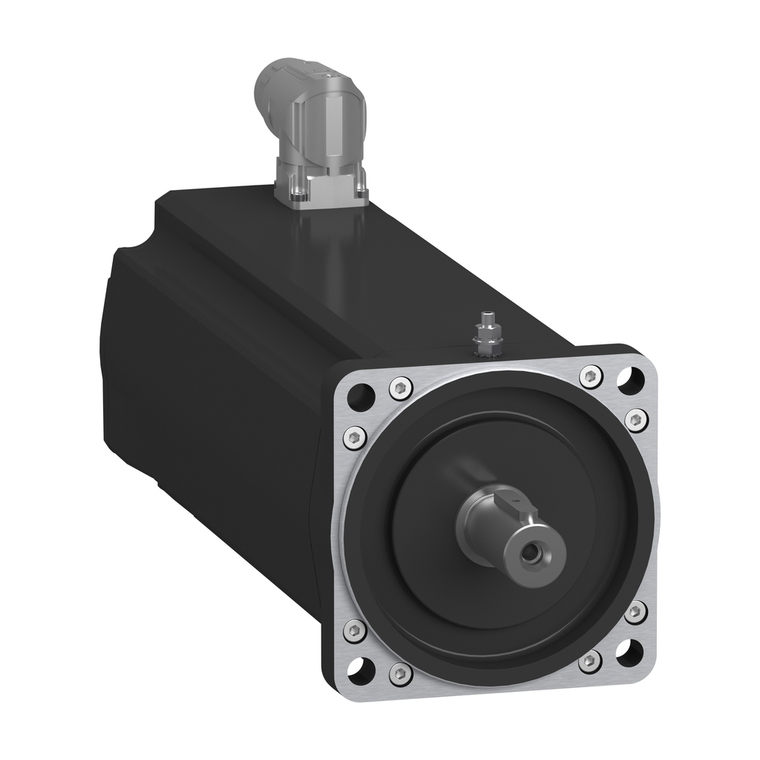

Schneider Electric SH31003P1BF4000 Sh3 Motor 100.3 Key Mlt Brk Omc Ang Ip54

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH31003P1BF4000 Sh3 Motor 100.3 Key Mlt Brk Omc Ang Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31003P1BF4000

UPC:

3.60648E+12

MPN:

Condition:

New

Product Or Component Type:

servo motor

Holding Brake:

with

Back Emf Constant:

77 V/krpm 20 °C

Maximum Radial Force Fr:

130 N 1000 rpm || 105 N 2000 rpm || 90 N 3000 rpm

Sustainable Offer Status:

Green Premium product

Pvc Free:

Yes

Circularity Profile:

N/A

Maximum Axial Force Fa:

20 N

Peak Stall Torque:

28.3 N.m 115...480 V three phase

Net Weight:

8.2 kg

Centring Collar Depth:

3.5 mm

Shaft End:

parallel key

Rotor Inertia:

3.838 kg.cm²

Electrical Connection:

straight connector

Nominal Torque:

7 N.m 230 V single phase || 5.7 N.m 400 V three phase || 5.1 N.m 480 V three phase

Range Compatibility:

PacDrive 3

Stator Resistance:

1.43 Ohm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Type Of Cooling:

natural convection

Continuous Stall Torque:

8 N.m 115...480 V three phase

Number Of Mounting Holes:

4

Maximum Mechanical Speed:

6000 rpm

Nominal Speed:

2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Phase:

three phase

Circle Diameter Of The Mounting Holes:

115 mm

Environmental Disclosure:

ENVPEP111049EN

Shaft Length:

40 mm

Continuous Stall Current:

6.6 A

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5

Speed Feedback Resolution:

262144 points/turn x 4096 turns

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mounting Holes Diameter:

9.0 mm

Stator Inductance:

9.4 mH

Number Of Motor Poles:

4

Torque Constant:

1.22 N.m/A 120 °C

Shaft Diameter:

19 mm

Motor Flange Size:

100 mm

Maximum Current Irms:

28.3 A

Encoder Type:

absolute multiturn Hiperface DSL

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Us] Rated Supply Voltage:

115...480 V

Brake Pull-In Power:

18 W

Continuous Power:

2400 W

Centring Collar Diameter:

95 mm

Key Width:

6 mm

Mercury Free:

Yes

Holding Torque:

9 N.m

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nominal Output Power:

1470 W 230 V single phase || 2390 W 400 V three phase || 2390 W 480 V three phase

Mounting Support:

international standard flange

Device Short Name:

SH3.....P

Length:

271.5 mm

China Rohs Regulation:

X

Rohs Exemption Information:

Yes
