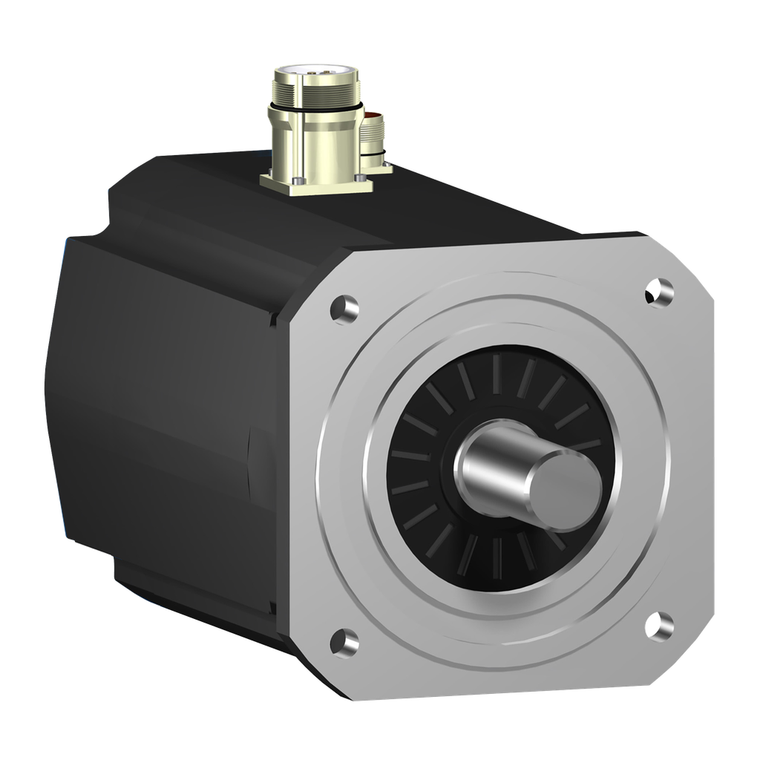

Schneider Electric SH32051P02A1100 Sh3 Motor 205.1 Mlt Str Ip65
Schneider Electric
$6,015.45
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric SH32051P02A1100 Sh3 Motor 205.1 Mlt Str Ip65
servo motor SH3 205 36,9Nm,nokey,multi,nobrake,str.conn,IP65/IP65,3.8k RPM
- Back Emf Constant:
- 104 V/krpm 20 °C
- Maximum Current Irms:
- 87.2 A
- Number Of Mounting Holes:
- 4
- Maximum Mechanical Speed:
- 3800 rpm
- Continuous Power:
- 5500 W
- Number Of Motor Poles:
- 5
- Continuous Stall Current:
- 21 A
- Product Or Component Type:
- servo motor
- Centring Collar Depth:
- 4 mm
- Motor Flange Size:
- 205 mm
- Shaft Diameter:
- 38 mm
- Circularity Profile:
- N/A
- Holding Brake:
- without
- Maximum Axial Force Fa:
- 740 N
- Mounting Support:
- international standard flange
- Speed Feedback Resolution:
- 128 periods
- Peak Stall Torque:
- 110 N.m 115...480 V three phase
- Continuous Stall Torque:
- 36.9 N.m 115...480 V three phase
- Nominal Torque:
- 31.9 N.m 115 V single phase || 27 N.m 230 V single phase || 17.5 N.m 400 V three phase || 13.8 N.m 480 V three phase
- Centring Collar Diameter:
- 180 mm
- Torque Constant:
- 1.6 N.m/A 120 °C
- Range Compatibility:
- PacDrive 3
- Shaft Length:
- 80 mm
- [Us] Rated Supply Voltage:
- 115...480 V
- Net Weight:
- 35 kg
- Circle Diameter Of The Mounting Holes:
- 215 mm
- Electrical Connection:
- straight connector
- Type Of Cooling:
- natural convection
- Environmental Disclosure:
- ENVPEP111049EN
- Stator Resistance:
- 0.3 Ohm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rotor Inertia:
- 71.4 kg.cm²
- Encoder Type:
- absolute multiturn SinCos Hiperface
- Length:
- 321 mm
- Pvc Free:
- Yes
- Nominal Speed:
- 750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Short Name:
- SH3.....P
- Phase:
- three phase
- Warranty:
- 18 months
- Stator Inductance:
- 8.7 mH
- China Rohs Regulation:
- X
- Mounting Holes Diameter:
- 14 mm
- Nominal Output Power:
- 2510 W 115 V single phase || 4240 W 230 V single phase || 5500 W 400 V three phase || 5200 W 480 V three phase
- Rohs Exemption Information:
- Yes
- Ip Degree Of Protection:
- motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
- Maximum Radial Force Fr:
- 3730 N 1000 rpm || 2960 N 2000 rpm || 2580 N 3000 rpm
- Shaft End:
- smooth shaft
- Catalog:
- View
- Datasheet:
- View
-
-
