Schneider Electric

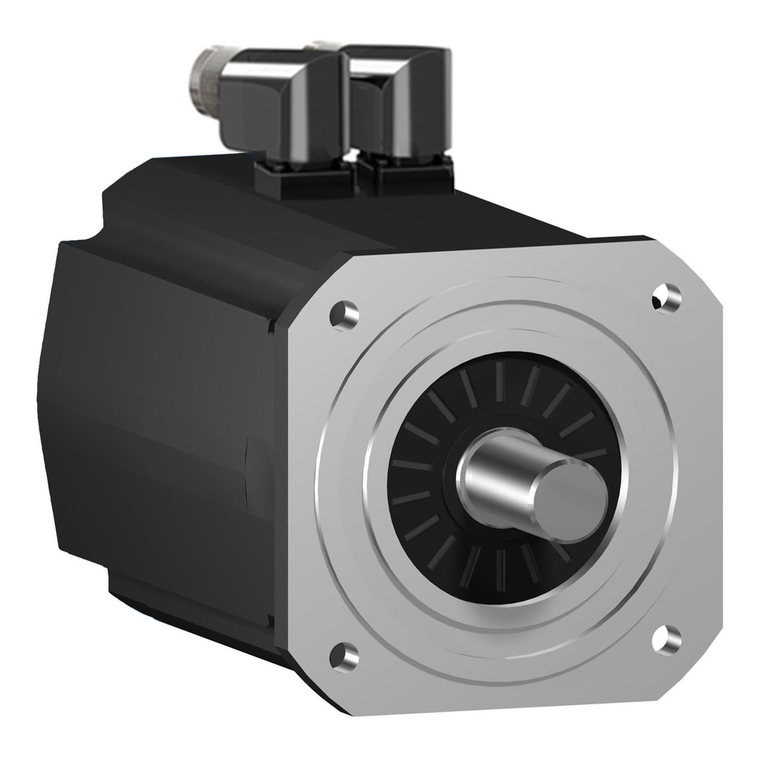

Schneider Electric SH32052P01F2200 Sh3 Motor 205.2 Sgl Brk Ang Ip65

SKU:

SH32052P01F2200

UPC:

3606481973436

MPN:

Condition:

New

Torque Constant:

2.58 N.m/A 120 °C

Number Of Motor Poles:

5

Warranty:

18 months

Rohs Exemption Information:

Yes

Circle Diameter Of The Mounting Holes:

215 mm

Shaft Diameter:

38 mm

Back Emf Constant:

161 V/krpm 20 °C

Product Or Component Type:

servo motor

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Rotor Inertia:

145 kg.cm²

Continuous Power:

7900 W

Speed Feedback Resolution:

128 periods

Environmental Disclosure:

ENVPEP111049EN

Centring Collar Diameter:

180 mm

Range Compatibility:

PacDrive 3

Number Of Mounting Holes:

4

Device Short Name:

SH3.....P

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Us] Rated Supply Voltage:

115...480 V

Maximum Radial Force Fr:

4200 N 1000 rpm || 3330 N 2000 rpm || 2910 N 3000 rpm

Centring Collar Depth:

4 mm

Shaft End:

smooth shaft

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Holes Diameter:

14 mm

Maximum Current Irms:

96.8 A

Pvc Free:

Yes

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Holding Brake:

with

Holding Torque:

80 N.m

Stator Inductance:

8.2 mH

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5

Peak Stall Torque:

220 N.m 115...480 V three phase

Motor Flange Size:

205 mm

Length:

454.5 mm

Encoder Type:

absolute single turn SinCos Hiperface

Shaft Length:

80 mm

Phase:

three phase

Maximum Mechanical Speed:

3800 rpm

Nominal Speed:

500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase

Mercury Free:

Yes

Maximum Axial Force Fa:

740 N

Continuous Stall Current:

25.7 A

Mounting Support:

international standard flange

Nominal Torque:

61.6 N.m 115 V single phase || 56 N.m 230 V single phase || 38.1 N.m 400 V three phase || 28.4 N.m 480 V three phase

Net Weight:

53.6 kg

Circularity Profile:

N/A

Continuous Stall Torque:

64.9 N.m 115...480 V three phase

Electrical Connection:

rotatable right angled connector

Stator Resistance:

0.3 Ohm

Type Of Cooling:

natural convection

Nominal Output Power:

3230 W 115 V single phase || 5860 W 230 V single phase || 7980 W 400 V three phase || 7140 W 480 V three phase

Sustainable Offer Status:

Green Premium product
