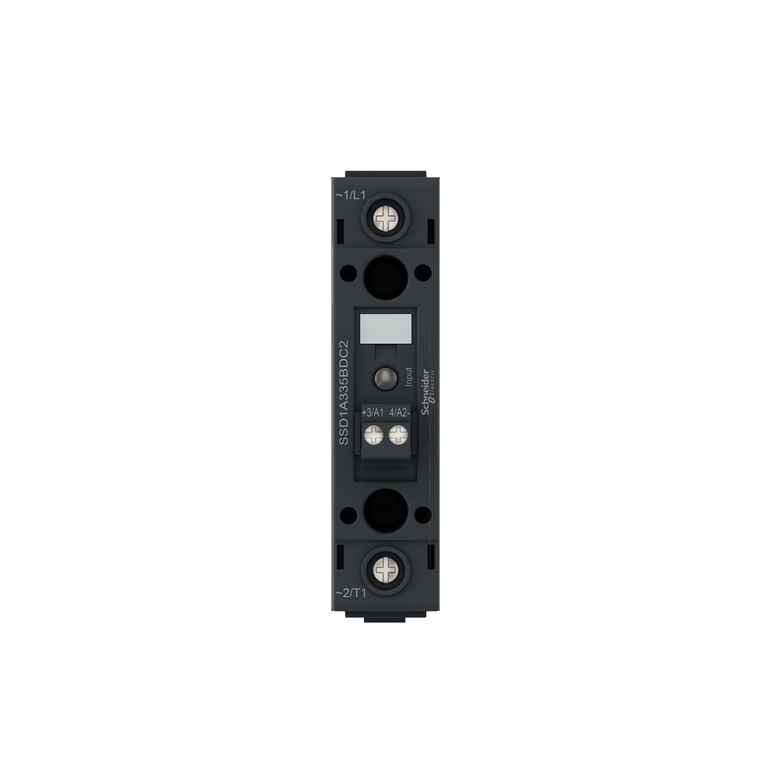

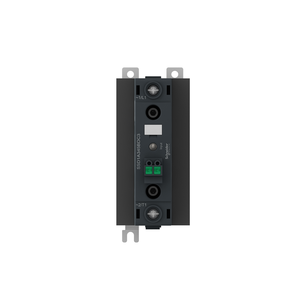

Schneider Electric SSD1A335BDC2 Solid State Relay-Din Rail, Single Phase
Schneider Electric
$87.69
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 35A power rated relay with pluggable screw input contactor type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.301Kg and its dimensions are, 22.5mm wide, 133.8mm deep, 91.9mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Maximum Voltage Drop:
- <1.15 V on-state
- Power Factor:
- 0.5 with maximum load
- Rated Duty:
- uninterrupted
- Electromagnetic Compatibility:
- electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2 || electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 || conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming
- Ip Degree Of Protection:
- IP20
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mercury Free:
- Yes
- Output Switching Mode:
- zero voltage switching
- Ambient Air Temperature For Storage:
- -40-100 °C
- Response Time:
- 0.5 cycle (turn-on) || 0.5 cycle (turn-off)
- Mounting Support:
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Tightening Torque:
- 0.5 N.m for control input || 5 lb.in for control input || 2...2.2 N.m for load output || 18...20 lb.in for load output
- Circularity Profile:
- ENVEOLI1508007EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Dielectric Strength:
- 4 kV AC for input/output circuit || 4 kV AC for input or output to case
- Motor Power Kw:
- 1.5 kW/2 hp at 120 V AC || 3.73 kW/5 hp at 240 V AC || 7.46 kW/10 hp at 480 V AC
- Absolute Maximum Voltage:
- 1200 V
- Product Configuration Type:
- contactor configuration with pluggable screw input
- Connections - Terminals:
- plug-inscrew terminals, clamping connection capacity:0.08...3.30 mm², AWG 28...AWG 12 for input || telescopic screw, clamping connection capacity:0.75...10 mm², AWG 20...AWG 8 for output
- Solid State Output Type:
- zero voltage switching
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV for input/output circuit || 6 kV for input or output to case
- Coordination Type:
- type 1 || type 2
- Contact Form:
- Form 5 semiconductor output DOL contactor
- Inrush Current:
- 1350 A at 60 Hz
- Line Rated Current:
- 35 A
- Input Current Limits:
- 10-15 mA
- Network Frequency:
- 47...440 Hz
- Ambient Air Temperature For Operation:
- -40-80 °C
- [Uc] Control Circuit Voltage:
- 4...32 V DC
- Device Presentation:
- complete product
- Local Signalling:
- for control voltage LED (green)
- Height:
- 91.9 mm
- Standards:
- IEC 61373:class B: category 1 || IEC 60947-4-3 || IEC 62314 || IEC 60950-1 || CSA C22.2 No 14-13 || UL 508
- Number Of Channels:
- 1
- Minimum Switching Voltage:
- 4 V DC turn-on
- Maximum Leakage Current:
- 1 mA off-state
- Pollution Degree:
- 2
- Load Current:
- 0.15-35 A
- Shock Resistance:
- 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27 || 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
- Environmental Disclosure:
- ENVPEP1508007EN
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Output Voltage:
- 48...600 V AC
- Product Or Component Type:
- solid state relay up to 40 A
- Sustainable Offer Status:
- Green Premium product
- Vibration Resistance:
- 0.75 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
- Flame Retardance:
- V-0 conforming to UL 94
- Maximum I²T For Fusing:
- 8320 A².s for 10 ms || 7593 A².s for 8.33 ms
- Phase:
- 1 phase
- Depth:
- 133.8 mm
- Dv/Dt:
- 500 V/µs off-state at maximum rated voltage
- Maximum Switching Voltage:
- 1 V DC turn-off
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation:
- X
- Net Weight:
- 0.301 kg
- Range Of Product:
- Harmony Solid State Relays
- Overvoltage Category:
- III
- Width:
- 22.5 mm
- Device Short Name:
- SSD1
