Schneider Electric SSD1A360BDC2 Solid State Relay-Din Rail, Single Phase
Schneider Electric
$103.46
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric SSD1A360BDC2 Solid State Relay-Din Rail, Single Phase

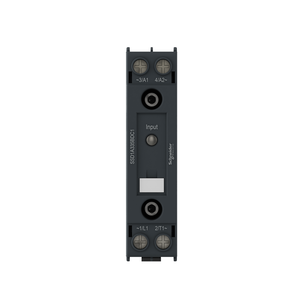

This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 60A power rated relay with pluggable screw input contactor type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.507Kg and its dimensions are, 45mm wide, 154.4mm deep, 111.5mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
- Tightening Torque:
- 0.5 N.m for control input || 5 lb.in for control input || 2...2.2 N.m for load output || 18...20 lb.in for load output
- Maximum Switching Voltage:
- 1 V DC turn-off
- Line Rated Current:
- 60 A
- Width:
- 45 mm
- Power Factor:
- 0.5 with maximum load
- Rated Duty:
- uninterrupted
- Overvoltage Category:
- III
- Output Switching Mode:
- zero voltage switching
- Vibration Resistance:
- 0.35 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sustainable Offer Status:
- Green Premium product
- Inrush Current:
- 1350 A at 60 Hz
- Local Signalling:
- for control voltage LED (green)
- Device Short Name:
- SSD1
- Product Configuration Type:
- contactor configuration with pluggable screw input
- Shock Resistance:
- 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27 || 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
- Phase:
- 1 phase
- Response Time:
- 0.5 cycle (turn-on) || 0.5 cycle (turn-off)
- Maximum I²T For Fusing:
- 8320 A².s for 10 ms || 7593 A².s for 8.33 ms
- Range Of Product:
- Harmony Solid State Relays
- Coordination Type:
- type 1 || type 2
- Circularity Profile:
- ENVEOLI1508007EN
- Device Presentation:
- complete product
- Electromagnetic Compatibility:
- electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2 || electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 || conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming
- Absolute Maximum Voltage:
- 1200 V
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV for input/output circuit || 6 kV for input or output to case
- Number Of Channels:
- 1
- Maximum Voltage Drop:
- <1.2 V on-state
- Mercury Free:
- Yes
- Ip Degree Of Protection:
- IP20
- Load Current:
- 0.15-60 A
- Pollution Degree:
- 2
- Flame Retardance:
- V-0 conforming to UL 94
- Standards:
- IEC 61373:class B: category 1 || IEC 60947-4-3 || IEC 62314 || IEC 60950-1 || CSA C22.2 No 14-13 || UL 508
- Net Weight:
- 0.507 kg
- Depth:
- 154.4 mm
- Ambient Air Temperature For Storage:
- -40-100 °C
- [Uc] Control Circuit Voltage:
- 4...32 V DC
- Solid State Output Type:
- zero voltage switching
- China Rohs Regulation:
- X
- Contact Form:
- Form 5 semiconductor output DOL contactor
- Dielectric Strength:
- 4 kV AC for input/output circuit || 4 kV AC for input or output to case
- Product Or Component Type:
- solid state relay up to 75 A
- Connections - Terminals:
- plug-inscrew terminals, clamping connection capacity:0.08...3.30 mm², AWG 28...AWG 12 for input || clamp terminal, clamping connection capacity:10...26.67 mm², AWG 8...AWG 3 for output
- Minimum Switching Voltage:
- 4 V DC turn-on
- Maximum Leakage Current:
- 1 mA off-state
- Mounting Support:
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Ambient Air Temperature For Operation:
- -40-80 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height:
- 111.5 mm
- Input Current Limits:
- 10-15 mA
- Network Frequency:
- 47...440 Hz
- Motor Power Kw:
- 1.5 kW/2 hp at 120 V AC || 3.73 kW/5 hp at 240 V AC || 7.46 kW/10 hp at 480 V AC
