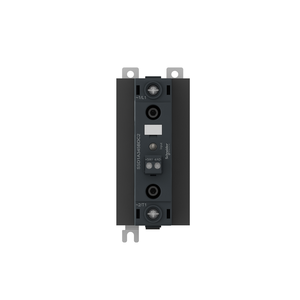

Schneider Electric SSD1A360BDC3 Solid State Relay-Din Rail, Single Phase
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 60A power rated relay with pluggable spring input contactor type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.507Kg and its dimensions are, 45mm wide, 154.4mm deep, 111.5mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
- Ip Degree Of Protection:
- IP20
- [Uc] Control Circuit Voltage:
- 4...32 V DC
- Network Frequency:
- 47...440 Hz
- China Rohs Regulation:
- X
- Device Short Name:
- SSD1
- Output Voltage:
- 48...600 V AC
- Rated Duty:
- uninterrupted
- Maximum Leakage Current:
- 1 mA off-state
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV for input/output circuit || 6 kV for input or output to case
- Maximum I²T For Fusing:
- 8320 A².s for 10 ms || 7593 A².s for 8.33 ms
- Product Configuration Type:
- contactor configuration with pluggable spring input
- Range Of Product:
- Harmony Solid State Relays
- Tightening Torque:
- 2...2.2 N.m for load output || 18...20 lb.in for load output
- Output Switching Mode:
- zero voltage switching
- Line Rated Current:
- 60 A
- Sustainable Offer Status:
- Green Premium product
- Standards:
- IEC 61373:class B: category 1 || IEC 60947-4-3 || IEC 62314 || IEC 60950-1 || CSA C22.2 No 14-13 || UL 508
- Device Presentation:
- complete product
- Ambient Air Temperature For Storage:
- -40-100 °C
- Contact Form:
- Form 5 semiconductor output DOL contactor
- Depth:
- 154.4 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Net Weight:
- 0.507 kg
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Pollution Degree:
- 2
- Flame Retardance:
- V-0 conforming to UL 94
- Dv/Dt:
- 500 V/µs off-state at maximum rated voltage
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Operation:
- -40-80 °C
- Maximum Voltage Drop:
- <1.2 V on-state
- Local Signalling:
- for control voltage LED (green)
- Phase:
- 1 phase
- Dielectric Strength:
- 4 kV AC for input/output circuit || 4 kV AC for input or output to case
- Motor Power Kw:
- 1.5 kW/2 hp at 120 V AC || 3.73 kW/5 hp at 240 V AC || 7.46 kW/10 hp at 480 V AC
- Inrush Current:
- 1350 A at 60 Hz
- Input Current Limits:
- 10-15 mA
- Product Or Component Type:
- solid state relay up to 75 A
- Solid State Output Type:
- zero voltage switching
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Absolute Maximum Voltage:
- 1200 V
- Mounting Support:
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Height:
- 111.5 mm
- Coordination Type:
- type 1 || type 2
- Number Of Channels:
- 1
- Connections - Terminals:
- plug-inspring terminals, clamping connection capacity:0.13...3.30 mm², AWG 26...AWG 12 for input || clamp terminal, clamping connection capacity:10...26.67 mm², AWG 8...AWG 3 for output
- Width:
- 45 mm
- Vibration Resistance:
- 0.35 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
- Mercury Free:
- Yes
- Minimum Switching Voltage:
- 4 V DC turn-on
- Response Time:
- 0.5 cycle (turn-on) || 0.5 cycle (turn-off)
- Load Current:
- 0.15-60 A
- Rohs Exemption Information:
- Yes
- Power Factor:
- 0.5 with maximum load
- Circularity Profile:
- ENVEOLI1508007EN
- Electromagnetic Compatibility:
- electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2 || electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 || conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Shock Resistance:
- 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27 || 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
- Overvoltage Category:
- III
- Maximum Switching Voltage:
- 1 V DC turn-off
- Environmental Disclosure:
- ENVPEP1508007EN
