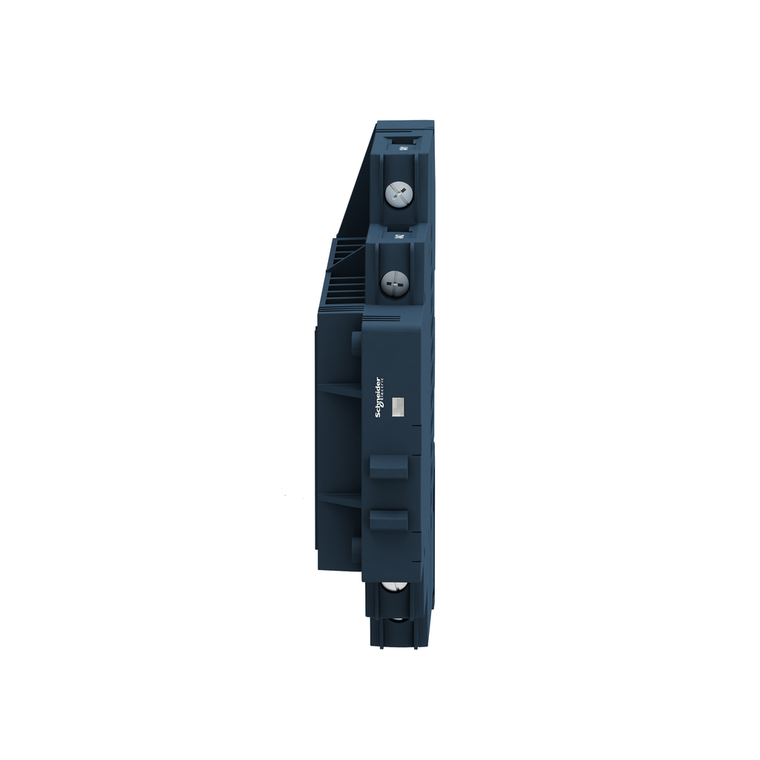

Schneider Electric SSM1D212BD 1P Ssr 12A@1-60Vdc Zero,4-32Vdc
This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 60V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
- Local Signalling:
- for input status LED (green)
- Maximum Switching Voltage:
- 1 V DC turn-off
- [Uc] Control Circuit Voltage:
- 4...32 V DC
- Ambient Air Temperature For Storage:
- -30-100 °C
- Sustainable Offer Status:
- Green Premium product
- Width:
- 18 mm
- Response Time:
- 0.6 ms (turn-on) || 0.3 ms (turn-off)
- Surge Current:
- 100 A 10 ms
- Ambient Air Temperature For Operation:
- -30-80 °C
- Tightening Torque:
- 0.5...0.8 N.m for input || 0.5...0.8 N.m for output
- Rohs Exemption Information:
- Yes
- Overvoltage Category:
- III
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Range Of Product:
- Harmony Solid State Relays
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Line Rated Current:
- 0
- Pollution Degree:
- 2
- Marking:
- CE
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Input Current Limits:
- 9-11 mA
- Ip Degree Of Protection:
- IP20
- Product Or Component Type:
- solid state relay up to 20 A
- Device Short Name:
- SSM
- Mercury Free:
- Yes
- Height:
- 90.3 mm
- Flame Retardance:
- V0 conforming to UL 94
- Capacitance Unbalance:
- 10 pF for input/output
- Mounting Support:
- symmetrical DIN rail
- Standards:
- IEC 61000 || IEC 60950-1 || IEC 62314
- Depth:
- 83.7 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Solid State Output Type:
- DC switching || Mosfet output
- Connections - Terminals:
- screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input || screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
- Dielectric Strength:
- 4 kV DC for input/output || 4 kV DC for input or output to case
- Environmental Disclosure:
- ENVPEP1307069EN
- Product Certifications:
- CSA || UL
- Absolute Maximum Voltage:
- 60 V
- Circularity Profile:
- ENVEOLI1307069EN
- Maximum Voltage Drop:
- <0.5 V on-state
- Phase:
- 1 phase
- Net Weight:
- 0.09 kg
- Number Of Channels:
- 1
- Minimum Switching Voltage:
- 4 V DC turn-on
- Maximum Leakage Current:
- 0.1 mA off-state
- Load Current:
- 0.0025-12 A
- China Rohs Regulation:
- X
- Output Switching Mode:
- DC switching
- Output Voltage:
- 1...60 V DC
- Resistance:
- 0.045 Ohm on-state
