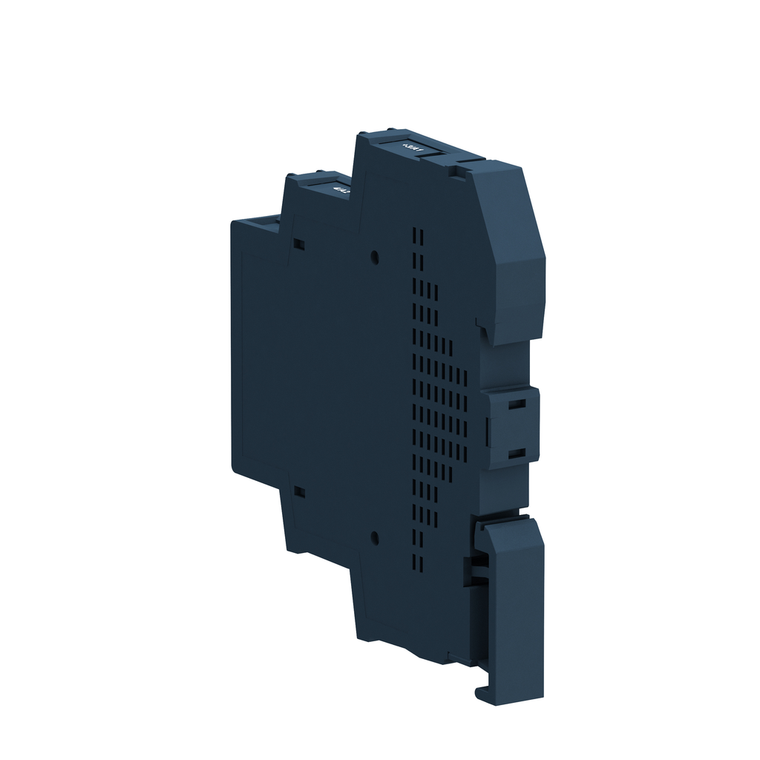

Schneider Electric SSM1D36BD 1P Ssr 6A@1-100Vdc Zero,4-32Vdc
This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 100V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0
- Capacitance Unbalance:
- 10 pF for input/output
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -30-80 °C
- Minimum Switching Voltage:
- 4 V DC turn-on
- Absolute Maximum Voltage:
- 100 V
- Product Or Component Type:
- solid state relay up to 10 A
- Mercury Free:
- Yes
- Number Of Channels:
- 1
- Mounting Support:
- symmetrical DIN rail
- Line Rated Current:
- 0.25
- Height:
- 90.3 mm
- Surge Current:
- 60 A 10 ms
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile:
- ENVEOLI1307069EN
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Dielectric Strength:
- 4 kV DC for input/output || 4 kV DC for input or output to case
- Output Switching Mode:
- DC switching
- Connections - Terminals:
- screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input || screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
- Local Signalling:
- for input status LED (green)
- Depth:
- 83.7 mm
- Input Current Limits:
- 8-11 mA
- [Uc] Control Circuit Voltage:
- 4...32 V DC
- Output Voltage:
- 1...100 V DC
- Standards:
- IEC 62314 || IEC 61000 || IEC 60950-1
- Maximum Voltage Drop:
- <0.6 V on-state
- Net Weight:
- 0.05 kg
- Pollution Degree:
- 2
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Certifications:
- UL || CSA
- Environmental Disclosure:
- ENVPEP1307069EN
- Maximum Switching Voltage:
- 1 V DC turn-off
- Ip Degree Of Protection:
- IP20
- Range Of Product:
- Harmony Solid State Relays
- Width:
- 11 mm
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Resistance:
- 0.1 Ohm on-state
- Ambient Air Temperature For Storage:
- -30-100 °C
- Maximum Leakage Current:
- 0.1 mA off-state
- Overvoltage Category:
- III
- Flame Retardance:
- V0 conforming to UL 94
- Load Current:
- 0.0025-6 A
- Marking:
- CE
- China Rohs Regulation:
- X
- Device Short Name:
- SSM
- Tightening Torque:
- 0.5...0.8 N.m for input || 0.5...0.8 N.m for output
- Phase:
- 1 phase
- Solid State Output Type:
- Mosfet output || DC switching
- Response Time:
- 0.6 ms (turn-on) || 0.3 ms (turn-off)
- Catalog:
- View
