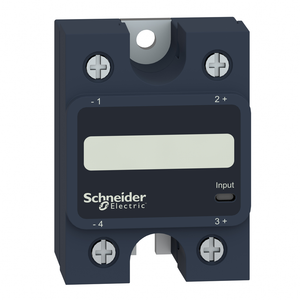

Schneider Electric SSP1A490BDT 1P Ssr 90A@48-660Vac Zero,4-32Vdc,Tp
This Harmony SSP solid state panel mount single-phase relay is rated 90A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 660V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Maximum Leakage Current:
- 1 mA off-state
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Surge Current:
- 1200 A 16.6 ms
- Phase:
- 1 phase
- Environmental Disclosure:
- ENVPEP1505006EN
- Sustainable Offer Status:
- Green Premium product
- Protection Device Type:
- type 1 - 63 A miniature circuit breaker (MCB) B || type 2 - 50 A miniature circuit breaker (MCB) B
- Device Short Name:
- SSP1
- Product Or Component Type:
- solid state relay up to 125 A
- Mounting Support:
- panel
- Output Switching Mode:
- zero voltage switching
- Thermal Impedance:
- 0.48 °C-in²/W at 25 psi
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV output to case || 6 kV input to output
- Maximum I²T For Fusing:
- 5976 A².s for 8.33 ms at 60 Hz || 6560 A².s for 10 ms at 50 Hz
- Solid State Output Type:
- zero voltage switching || SCR output
- Response Time:
- 0.5 cycle (turn-on) || 0.5 cycle (turn-off)
- Connections - Terminals:
- screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26
- Range Of Product:
- Harmony Solid State Relays
- Maximum Voltage Drop:
- <1.15 V on-state
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Thermal Resitance:
- 0.27 °C/W junction to case
- Tightening Torque:
- 1.5...1.7 N.m for input || 2...2.2 N.m for output
- Line Rated Current:
- 90 A
- Marking:
- EAC || UL || CE || CSA
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- IP20
- Cos Phi:
- 0.5-0.5 (with maximum load)
- Rohs Exemption Information:
- Yes
- Capacitance Unbalance:
- 8 pF for input/output
- Dielectric Strength:
- 4 kV AC for input/output || 4 kV AC for input or output to case
- Safety Reliability Data:
- MTTFd = 1875.9 years || B10d = 1731395
- Standards:
- CSA C22.2 No 14-13 || IEC 60950-1 || UL 508 || IEC 62314
- Absolute Maximum Voltage:
- 1200 V
- Ambient Air Temperature For Storage:
- -40-125 °C
- Overvoltage Category:
- III
- Provided Equipment:
- thermal pad
- Minimum Switching Voltage:
- 4 V DC turn-on
- Load Current:
- 0.15-90 A
- Maximum Switching Voltage:
- 1 V DC turn-off
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Dv/Dt:
- 500 V/µs off-state at maximum voltage
- Product Certifications:
- UL || CSA || CE || EAC
- Ambient Air Temperature For Operation:
- -40-80 °C
- Net Weight:
- 89.2 g
- Device Presentation:
- complete product
- Circularity Profile:
- ENVEOLI1505006EN
- Maximum Horse Power Rating:
- 1.5 hp 120 V AC || 3 hp 240 V AC || 7.5 hp 480 V AC
- Input Current Limits:
- 7-12 mA
- Local Signalling:
- LED, green input
