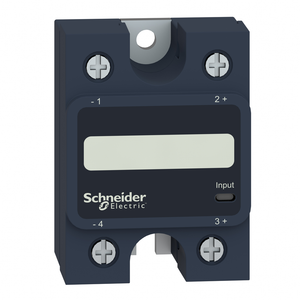

Schneider Electric SSP1A490M7 1P Ssr 90A@48-660Vac Zero,90-280Vac

Schneider Electric SSP1A490M7 1P Ssr 90A@48-660Vac Zero,90-280Vac

Schneider Electric
SKU:
SSP1A490M7
|
UPC:
3606485441986
$122.98
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 90A, is controlled withA 90V to 280V AC circuit, has a rated load voltage of 48V to 660V AC output. It also has a test button for easy debugging, testing and commissioning 0 It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events 0
Additional Information
Solid State Output Type:
SCR output || zero voltage switching
Minimum Switching Voltage:
90 V AC turn-on
Ambient Air Temperature For Operation:
-40-80 °C
Capacitance Unbalance:
8 pF for input/output
Input Current Limits:
5-10 mA
Tightening Torque:
1.5...1.7 N.m for input || 2...2.2 N.m for output
Phase:
1 phase
Ip Degree Of Protection:
IP20
Pollution Degree:
2
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental Disclosure:
ENVPEP1505006EN
Circularity Profile:
ENVEOLI1505006EN
Dielectric Strength:
4 kV AC for input/output || 4 kV AC for input or output to case
Line Rated Current:
90 A
Mounting Support:
panel
[Uimp] Rated Impulse Withstand Voltage:
6 kV output to case || 6 kV input to output
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage:
-40-125 °C
Surge Current:
1200 A 16.6 ms
Maximum I²T For Fusing:
5976 A².s for 8.33 ms at 60 Hz || 6560 A².s for 10 ms at 50 Hz
Connections - Terminals:
screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26
Maximum Voltage Drop:
<1.15 V on-state
Product Or Component Type:
solid state relay up to 125 A
Standards:
UL 508 || IEC 62314 || IEC 60950-1 || CSA C22.2 No 14-13
Safety Reliability Data:
B10d = 1731395 || MTTFd = 1875.9 years
Protection Device Type:
type 1 - 63 A miniature circuit breaker (MCB) B || type 2 - 50 A miniature circuit breaker (MCB) B
Net Weight:
89.2 g
China Rohs Regulation:
X
Maximum Leakage Current:
1 mA off-state
Marking:
EAC || UL || CSA || CE
Insulation Resistance:
1000 MOhm at 500 V DC
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Output Switching Mode:
zero voltage switching
Dv/Dt:
500 V/µs off-state at maximum voltage
Maximum Horse Power Rating:
1.5 hp 120 V AC || 3 hp 240 V AC || 7.5 hp 480 V AC
Product Certifications:
UL || EAC || CSA || CE
Thermal Resitance:
0.27 °C/W junction to case
Rohs Exemption Information:
Yes
Maximum Switching Voltage:
10 V AC turn-off
Range Of Product:
Harmony Solid State Relays
Sustainable Offer Status:
Green Premium product
Absolute Maximum Voltage:
1200 V
Response Time:
30 ms (turn-off) || 25 ms (turn-on)
Load Current:
0.15-90 A
Mercury Free:
Yes
Device Short Name:
SSP1
Overvoltage Category:
III
Local Signalling:
LED, green input
Cos Phi:
0.5-0.5 (with maximum load)
Device Presentation:
complete product
