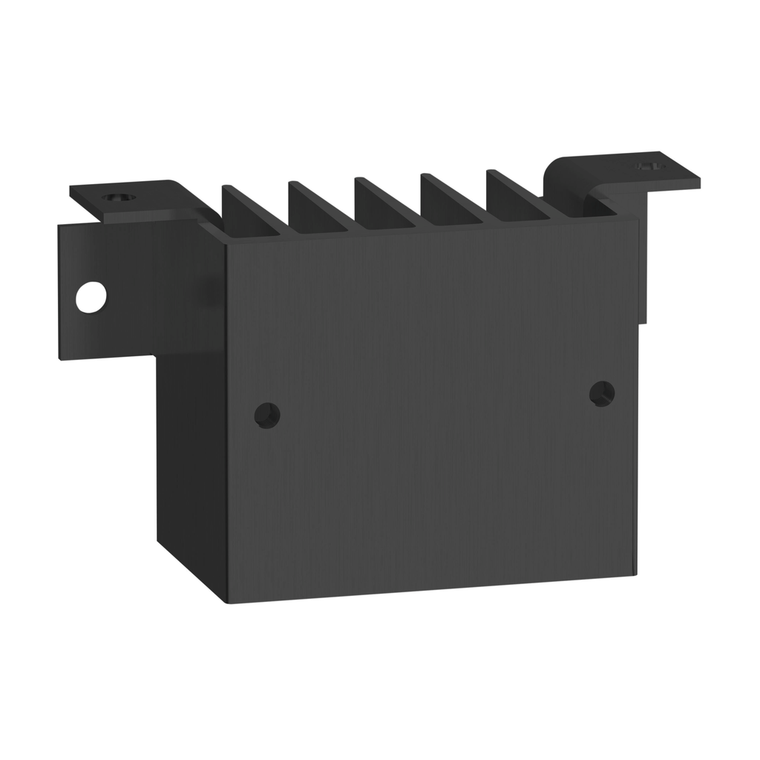

Schneider Electric SSRHP25 Heat Sink
Schneider Electric
$36.13
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Heat sink, Harmony, panel mount, thermal resistance 2.5 degree C W
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Circularity Profile:
- N/A
- China Rohs Regulation:
- X
- Range Of Product:
- Harmony Solid State Relays
- Toxic Heavy Metal Free:
- Yes
- Environmental Disclosure:
- ENVPEP1308009
- Material:
- aluminium
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Depth:
- 52.3 mm
- Number Of Mounting Holes:
- 2 UNC 8-32
- Net Weight:
- 0.100 kg
- Product Compatibility:
- 1 solid state relay SSR panel
- Surface Finish:
- black anodized
- Rohs Exemption Information:
- Yes
- Tightening Torque:
- 1.7-2.2 N.m
- Mercury Free:
- Yes
- Mounting Support:
- panel
- Sale Per Indivisible Quantity:
- 1
- Thermal Resitance:
- 2.5 °C/W
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Product Or Component Type:
- heat sink
- Surface And Useful Surface:
- 336 cm²
- Width:
- 58.9 mm
- Height:
- 40.6 mm
