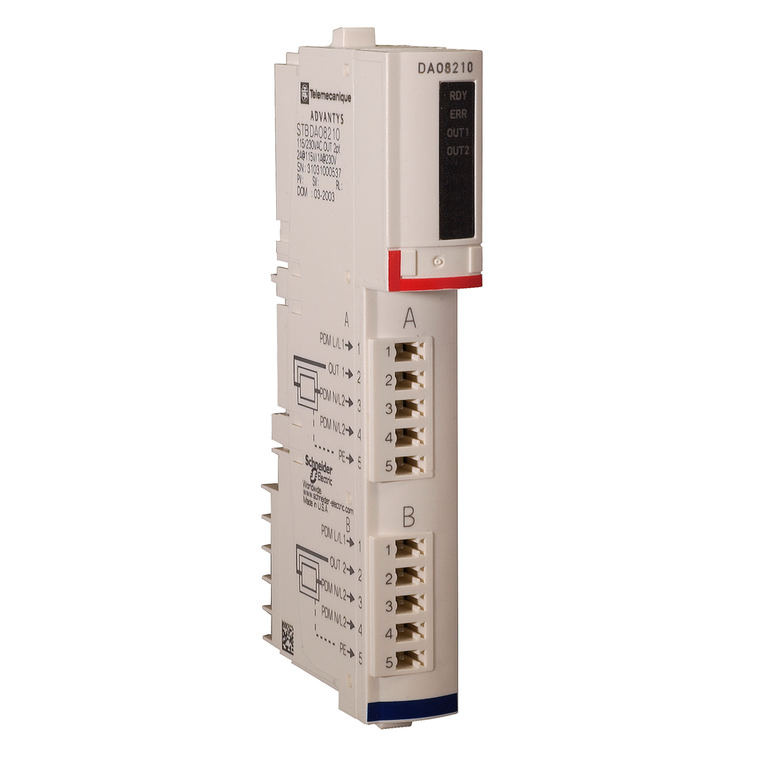

Schneider Electric STBDAO8210K 115/230Vac Out 2Pt Kit
Schneider Electric
$188.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric STBDAO8210K 115/230Vac Out 2Pt Kit
standard digital output kit - Modicon STB - 115..230 V AC - 2 O
- Pollution Degree:
- 2 IEC 60664-1
- Maximum Leakage Current:
- 2 mA at state 0 115 V || 2.5 mA at state 0 230 V
- Product Or Component Type:
- standard digital output kit
- Product Compatibility:
- I/O base STBXBA2000 || power distribution module STBPDT2100/2105
- Fallback Status:
- state 0 basic NIMs || user configurable standard NIMs
- Discrete Output Logic:
- positive or negative
- Output Voltage:
- 20...265 V AC
- Minimum Load:
- 5 mA
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
- Width:
- 128.3 mm
- Discrete Output Current:
- 1000 mA 60 °C || 2000 mA 30 °C
- Warranty:
- 18 months
- Response Time:
- 10 ms off-to-on || 10.5 ms on-to-off
- Insulation Between Channels And Logic Bus:
- 1780 V for 1 minute
- Discrete Output Voltage Type:
- AC
- Rohs Exemption Information:
- Yes
- Relative Humidity:
- 95-95 % 60-60 °C without condensation
- Net Weight:
- 0.125 kg
- Reset:
- manual or automatic reset COM fault
- Kit Composition:
- STBXTS1100, 5-terminal screw type connector || STBDAO8210 module || STBXTS2110, 5-terminal spring clamp connector || STBXBA2000 base
- Ambient Air Temperature For Operation:
- 32...140 °F without derating
- Range Of Product:
- Modicon STB distributed I/O solution
- Ambient Air Temperature For Storage:
- -40-85 °C without derating
- Cold Swapping:
- yes
- Absolute Maximum Voltage:
- 300 V 10 s || 400 V 20 ms
- Surge Current:
- 20 A 40 ms || 30 A 20 ms
- Shock Resistance:
- 30 gn 11 ms IEC 88 reference 2-27
- Discrete Output Number:
- 2
- Ambient Air Temperature For Storage:
- -40...185 °F without derating
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Supply:
- power distribution module
- Overvoltage Category:
- II
- Hot Swapping Fallback:
- yes for standard NIMs
- Protection Type:
- output surge protection varistance and RC circuit
- Discrete Output Voltage:
- 115...230 V
- Mercury Free:
- Yes
- China Rohs Regulation:
- X
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Current Consumption:
- 45 mA 5 V DC logic bus
- Depth:
- 70 mm
- Status Led:
- 1 LED (Green) module status (RDY) || 1 LED per channel (Green) channel status (OUT1 to OUT2) || 1 LED (Red) module error (ERR)
- Height:
- 18.4 mm
- Discrete Output Type:
- triac
- Operating Altitude:
- <= 6561.68 ft (2000 m)
- Product Certifications:
- UL || CSA || FM Class 1 Division 2
- Ambient Air Temperature For Operation:
- 0-60 °C without derating)
- Standards:
- IEC 61131-2
- Marking:
- CE
- Ip Degree Of Protection:
- IP20 conforming to IEC 61131-2 class 1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
