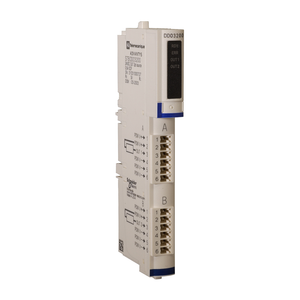

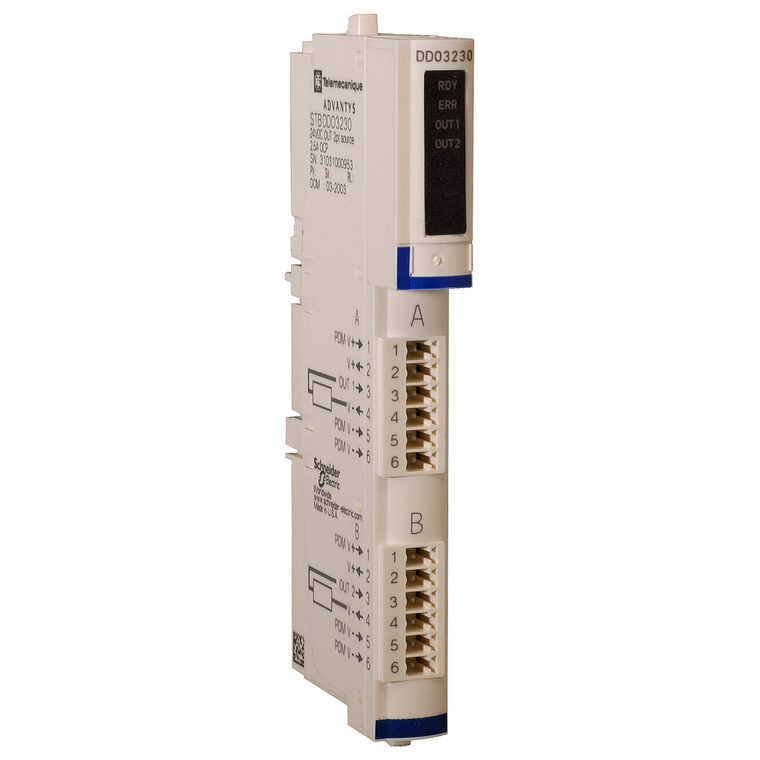

Schneider Electric STBDDO3230K 24Vdc Out 2Pt 2.0A Kit
Schneider Electric
$128.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric STBDDO3230K 24Vdc Out 2Pt 2.0A Kit
standard digital output kit STB - 24 V DC - 2 O
- Net Weight:
- 0.116 kg
- Maximum Load Inductance:
- 500 mH 4 Hz
- Product Certifications:
- FM Class 1 Division 2 || CSA || UL
- Response Time:
- 520 µs off-to-on || 720 µs on-to-off
- Maximum Load Capacitance:
- 50 µF
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Hot Swapping Fallback:
- yes for standard NIMs
- Product Or Component Type:
- standard digital output kit
- Current Consumption:
- 45 mA 5 V DC logic bus
- Absolute Maximum Voltage:
- 56 V 1.3 ms
- Ambient Air Temperature For Storage:
- -40-85 °C without derating
- Vibration Resistance:
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
- Width:
- 128.3 mm
- Supply:
- power distribution module
- Pollution Degree:
- 2 IEC 60664-1
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Standards:
- IEC 61131-2
- Product Compatibility:
- power distribution module STBPDT3100/3105 || I/O base STBXBA1000
- Protection Type:
- power protection 1 external fuse per output time lag 2.5 A || reverse polarity protection || short-circuit protection || thermal overload protection
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Discrete Output Type:
- solid state
- Cold Swapping:
- yes
- Discrete Output Number:
- 2
- Ambient Air Temperature For Storage:
- -40...185 °F without derating
- Minimum Load:
- 2 mA
- Output Voltage:
- 19.2...30 V DC
- Reset:
- manual or automatic reset COM fault
- Shock Resistance:
- 30 gn 11 ms IEC 88 reference 2-27
- Status Led:
- 1 LED (Green) module status (RDY) || 1 LED per channel (Green) channel status (OUT1 to OUT2) || 1 LED (Red) module error (ERR)
- Discrete Output Current:
- 2000 mA
- Ambient Air Temperature For Operation:
- 0-60 °C without derating)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Discrete Output Voltage Type:
- DC
- Insulation Between Channels And Logic Bus:
- 1500 V for 1 minute
- Depth:
- 70 mm
- Kit Composition:
- STBXBA1000 base || STBXTS2100, 6-terminal spring clamp connector || STBXTS1100, 6-terminal screw type connector || STBDDO3230 module
- China Rohs Regulation:
- X
- Ambient Air Temperature For Operation:
- 32...140 °F without derating
- Discrete Output Logic:
- positive or negative
- Height:
- 13.9 mm
- Fallback Status:
- state 0 basic NIMs || user configurable standard NIMs
- [Us] Rated Supply Voltage:
- 24 V DC
- Range Of Product:
- Modicon STB distributed I/O solution
- Insulation Between Channels:
- 1500 V for 1 minute
- Surge Current:
- 10 A 0.5 ms
- Ip Degree Of Protection:
- IP20 conforming to IEC 61131-2 class 1
- Operating Altitude:
- <= 6561.68 ft (2000 m)
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Overvoltage Category:
- II
- Maximum Leakage Current:
- 1 mA at state 0 30 V
- Relative Humidity:
- 95-95 % 60-60 °C without condensation
- Marking:
- CE
- Discrete Output Voltage:
- 24 V
- Catalog:
- View
- Datasheet:
- View
