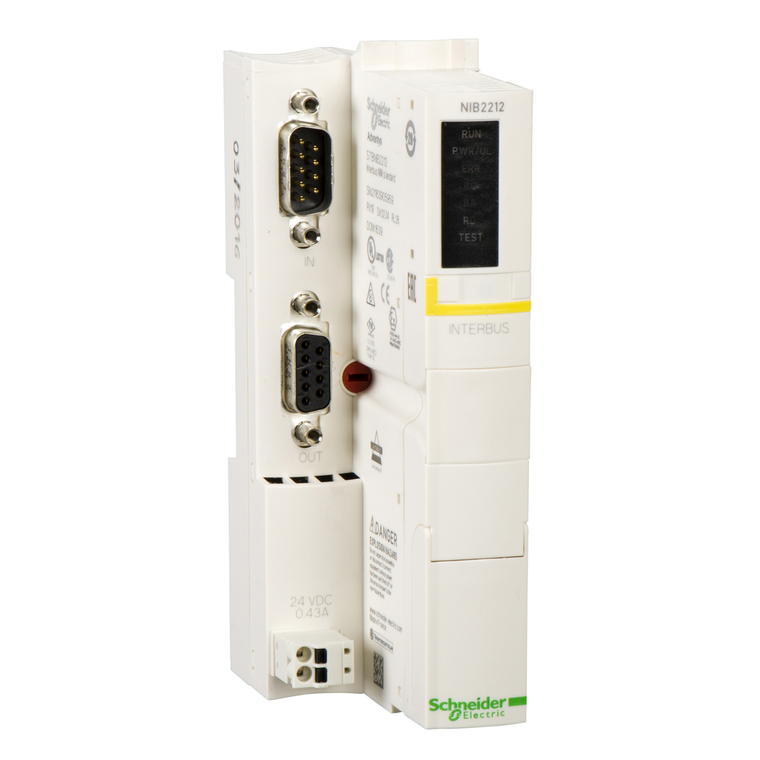

Schneider Electric STBNIB2212 Interbus Nim Standard

(No reviews yet) Write a Review

Write a Review

Schneider Electric STBNIB2212 Interbus Nim Standard

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

STBNIB2212

UPC:

3595862055147

MPN:

Condition:

New

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ip Degree Of Protection:

IP20 conforming to IEC 61131-2 class 1

Supply Voltage Limits:

19.2-30 V

Electromagnetic Compatibility:

immunity to electromagnetic interference IEC 61131-2

Depth:

70 mm

Input Current:

430 mA supply circuit

Ambient Air Temperature For Storage:

-40-85 °C

Ambient Air Temperature For Operation:

0-60 °C without derating) || -25-70 °C with derating factor)

Communication Service:

implicit exchange of process data || logical addressing || diagnostics

Net Weight:

0.155 kg

Range Of Product:

Modicon STB distributed I/O solution

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shock Resistance:

30 gn 11 ms IEC 88 reference 2-27

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Output Voltage:

5.25 V DC +/- 0.21 %)logic bus

China Rohs Regulation:

X

Maximum Output Impedance:

0.05 Ohm 100000 kHz

Power Supply Type:

SELV

Relative Humidity:

95-95 % 60-60 °C without condensation

Operating Altitude:

<= 6561.68 ft (2000 m)

Structure Type:

industrial field bus (Generation4)

Rohs Exemption Information:

Yes

Nominal Output Current:

0.575 A 60-70 °C || 1.2 A

Product Or Component Type:

standard Network Interface Module

Vibration Resistance:

3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz

Number Of Segments:

1 primary, maximum 6 extensions

Pollution Degree:

2 IEC 60664-1

[Us] Rated Supply Voltage:

24 V DC

Maximum Supply Current:

700 A

Number Of Addressable I/O Module:

0-32 per island

Mercury Free:

Yes

Overvoltage Category:

II

Integrated Connection Type:

Interbus InterBus Club 9-way male isolated RS485 SUB-D 1 twisted shielded pair input bus) || Interbus InterBus Club 9-way female isolated RS485 SUB-D 1 twisted shielded pair output bus) || Interbus InterBus Club HE-13 RS232 port) || Interbus InterBus

Status Led:

1 LED (Green) BA || 1 LED (Green) island state (RUN) || 1 LED (Green) power supply (PWR) || 1 LED (Green) RC || 1 LED (Red) module error (ERR) || 1 LED (Red) RD || 1 LED (Yellow) test mode

Warranty:

18 months

Number Of Slave:

512

Transmission Rate:

500 kbit/s 0-12800 m for the bus between stations || 500 kbit/s 0-400 m per bus segment between stations || 500 kbit/s 0-50 m for the installation bus

Height:

40 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Width:

128.3 mm

Product Certifications:

CSA || C-tick || UL || FM Class 1 Division 2 || ATEX Cat 3G

Marking:

CE
