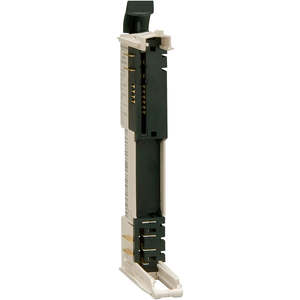

Schneider Electric TM5ACBM3FS Bus Base Fs 24Vdc Connected Red
Schneider Electric
$38.75
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Modicon TM5 range, an offer of connection accessories for IP20 modular I/O system. The bus base module offers a rated supply voltage of 24V DC with power consumption of 0.13W. It is an IP20 rated product. It is available in red color. It is suitable for packaging, material working, material handling and machine control solution applications. This product is certified by CE and CULus. It is compatible with Modicon M258 TM5 safety I/O module and Modicon LMC058 TM5 safety I/O module. This IP20 modular IO system offers a flexible and scalable configuration of expansions by direct connection with the Modicon controllers. Flexible and scalable, designed for complex machines.
- Color:
- Red
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP20
- Ambient Air Temperature For Storage:
- -25-70 °C
- Relative Humidity:
- 5-95 % without condensation or dripping water
- Product Certifications:
- CE || cULus
- Accessory / Separate Part Type:
- bus base
- Power Consumption In W:
- 0.13 W
- Range Compatibility:
- Modicon M258 || Modicon LMC058
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile:
- ENVEOLI1511023EN
- Pvc Free:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Toxic Heavy Metal Free:
- Yes
- Range Of Product:
- Modicon TM5
- Environmental Disclosure:
- ENVPEP1511023EN
- China Rohs Regulation:
- X
- [Us] Rated Supply Voltage:
- 24 V DC
- Rohs Exemption Information:
- Yes
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Mercury Free:
- Yes
- Accessory / Separate Part Category:
- communication accessories
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ambient Air Temperature For Operation:
- 0-55 °C horizontal || 0-50 °C vertical
- Sustainable Offer Status:
- Green Premium product
- Product Compatibility:
- TM5 safety I/O modules
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Catalog:
- View
- Datasheet:
- View
