Schneider Electric TM5SBER2 Mod. Bus Receiver/Bus Ps/ Pwr Distrib.
Schneider Electric
$240.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

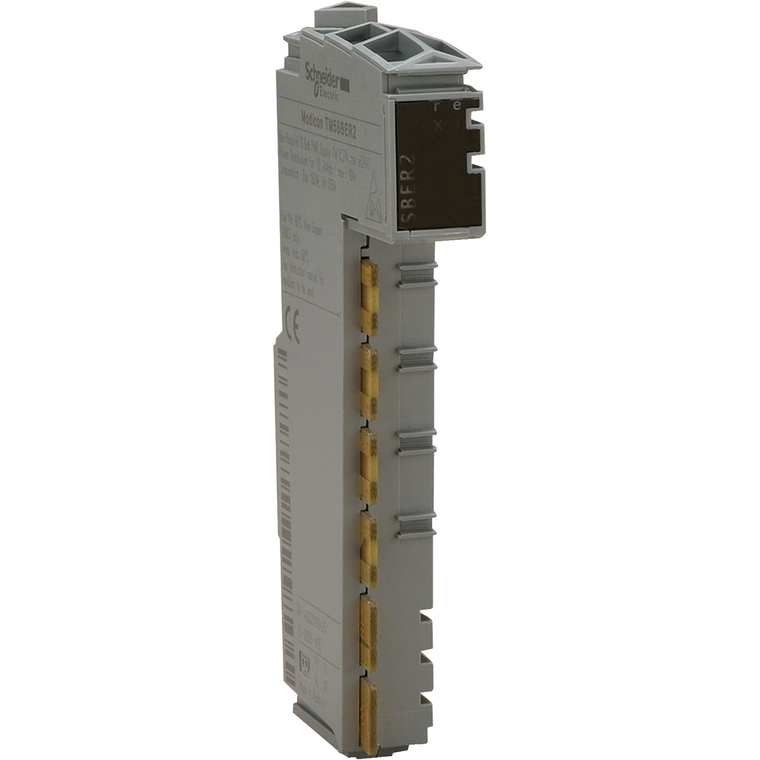

Schneider Electric TM5SBER2 Mod. Bus Receiver/Bus Ps/ Pwr Distrib.
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The remote receiver module provides communication between remote I/O and distribute power. It is a remote receiver module with a current consumption of 25mA at 24V DC input/output and a maximum power dissipation of 2.22W. This product is part of a flexible and scalable I/O configuration for automation solutions. The bus length is 2500m and maximum cable distance between devices is 100m. It is an IP20 rated product. The housing colour is grey. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
- Shock Resistance:
- 15 gn 11 ms
- Toxic Heavy Metal Free:
- Yes
- Vibration Resistance:
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
- Resistance To Electrostatic Discharge:
- 4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
- Bus Length:
- 2500 m
- Surge Withstand:
- 0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Ip Degree Of Protection:
- IP20IEC 61131-2 || IP67
- China Rohs Regulation:
- X
- Ambient Air Temperature For Storage:
- -25-70 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Marking:
- CE
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mercury Free:
- Yes
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Maximum Cable Distance Between Devices:
- 100 m
- Range Of Product:
- Modicon TM5
- Local Signalling:
- 1 LED green power supply || 1 LED red power bus current || 1 LED red power supply || 1 LED yellow communication data bus
- Warranty:
- 18 months
- Current Consumption:
- 25 mA 24 V DC input/output
- Environmental Disclosure:
- ENVPEP1511026EN
- Product Certifications:
- CSA || cULus || C-tick || GOST-R
- Maximum Power Dissipation In W:
- 2.22 W
- Electromagnetic Compatibility:
- EN/IEC 61000-4-6
- Ambient Air Temperature For Operation:
- 0-50 °C vertical installation) || 0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation)
- Resistance To Electromagnetic Fields:
- 1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80...2000 MHz IEC 61000-4-3
- Pvc Free:
- Yes
- Color:
- Gray
- Product Or Component Type:
- remote receiver module
- Resistance To Fast Transients:
- 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
- Standards:
- CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2 || UL 508
- Product Specific Application:
- communication between remote I/O || distribute power to TM5 bus and I/O
- Relative Humidity:
- 5-95 % without condensation
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Disturbance Radiated/Conducted:
- CISPR 11
- Storage Altitude:
- 0-3000 m
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pollution Degree:
- 2 IEC 60664
- Circularity Profile:
- ENVEOLI1511026EN
- Range Compatibility:
- Modicon M258 || Modicon LMC058
- Net Weight:
- 0.025 kg
- Product Compatibility:
- logic controller || motion controller
