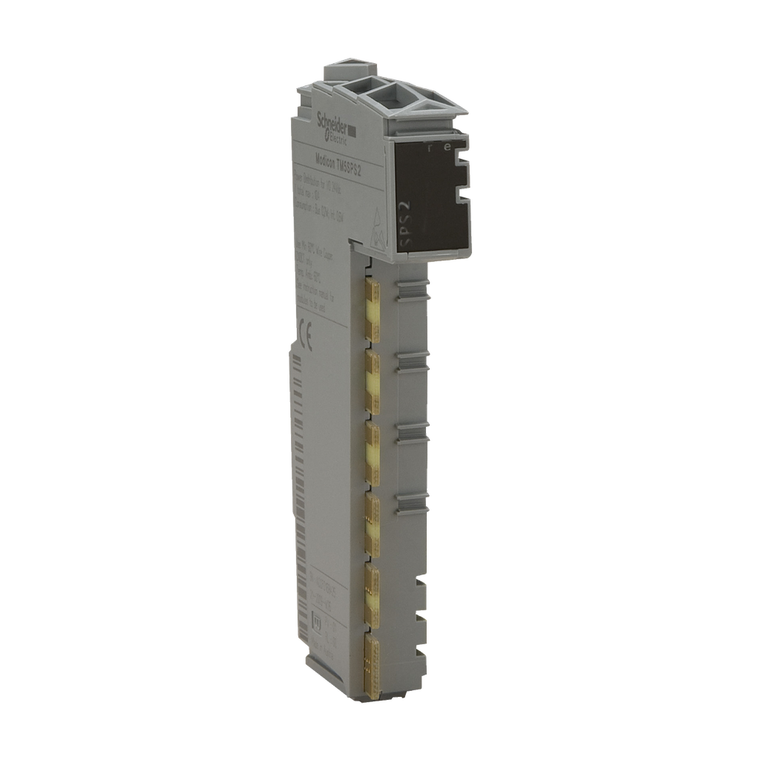

Schneider Electric TM5SPS2 Mod. Pwr Distrib. 24Vdc/Bus Ps Grey

Schneider Electric TM5SPS2 Mod. Pwr Distrib. 24Vdc/Bus Ps Grey

Schneider Electric
SKU:
TM5SPS2
|
UPC:
3.59586E+12
$195.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The is a power distribution module is suitable for supply 24V DC I/O modules and bus TM5. It is a power distribution module with a current consumption of 25mA 24V DC and a maximum power dissipation of 1.91W. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a short-circuit protection with 10A external fuse. It is an IP20 rated product. The housing colour is grey. It weighs 0.03kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 and Modicon LMC058 controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Additional Information
Surge Withstand:
0.5 kV differential mode EN/IEC 61000-4-5 || 1 kV common mode EN/IEC 61000-4-5
Marking:
CE
Resistance To Fast Transients:
1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable) || 2 kV EN/IEC 61000-4-4 power lines)
Circularity Profile:
ENVEOLI1511026EN
Product Specific Application:
supply 24 V DC I/O modules and bus TM5
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption Information:
Yes
Operating Altitude:
0...6561.68 ft (0...2000 m)
Vibration Resistance:
1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Short-Circuit Protection:
10 A external fuse
Electromagnetic Compatibility:
EN/IEC 61000-4-6
Product Certifications:
CSA || C-tick || cULus || GOST-R
Toxic Heavy Metal Free:
Yes
Power Supply Output Current:
1136-1136 mA TM5 power bus -10-55 °C || 740-740 mA TM5 power bus 55-60 °C || 10-10 A I/O power segment
Range Compatibility:
Modicon LMC058 || Modicon M258
Storage Altitude:
0-3000 m
China Rohs Regulation:
X
Ambient Air Temperature For Storage:
-25-70 °C
Color:
Gray
Pvc Free:
Yes
Warranty:
18 months
Resistance To Electrostatic Discharge:
4 kV on contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation:
-10-55 °C without derating horizontal installation) || 55-60 °C with derating factor horizontal installation) || -10-50 °C vertical installation)
Product Or Component Type:
power distribution module
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Disturbance Radiated/Conducted:
CISPR 11
Resistance To Electromagnetic Fields:
1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80...2000 MHz EN/IEC 61000-4-3
Reach Free Of Svhc:
Yes
Environmental Disclosure:
ENVPEP1511026EN
Maximum Power Dissipation In W:
1.91 W
Network Type:
DC
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Relative Humidity:
5-95 % without condensation
Standards:
UL 508 || CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61131-2
Range Of Product:
Modicon TM5
[Us] Rated Supply Voltage:
24 V
Product Compatibility:
motion controller || logic controller
Current Consumption:
<= 25 mA 24 V DC
Shock Resistance:
15 gn 11 ms
