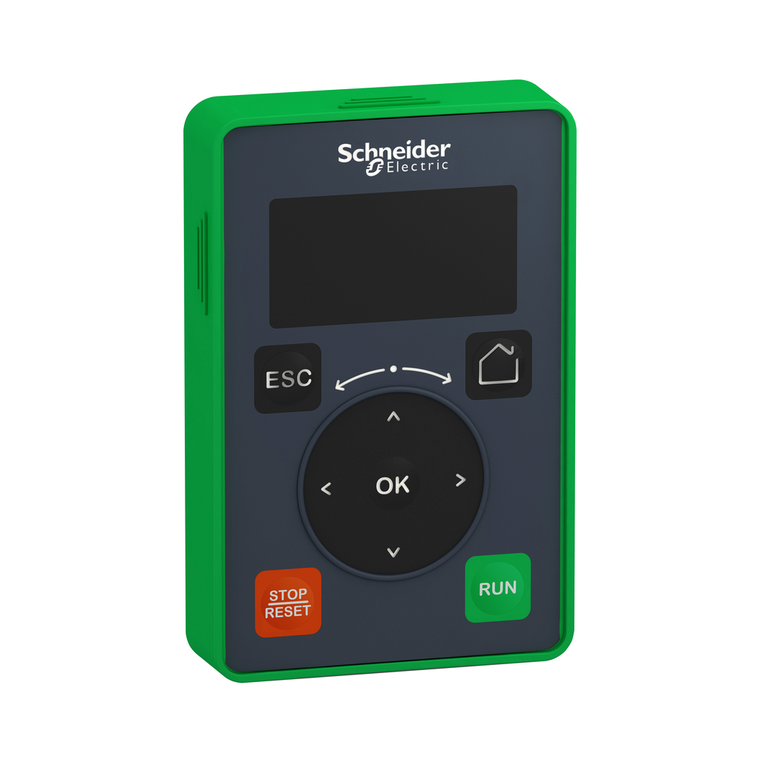

Schneider Electric VW3A1113 Basic Keypad
Schneider Electric
$150.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric VW3A1113 Basic Keypad
This plain text terminal is an option for variable speed drives of Altivar range. It is a dialogue option for the variable speed drive. Its protection index is IP21. The plain text display terminal can be connected and mounted on the front of the drive. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 128 x 64 pixels. It weighs 200g. It is used to control, adjust, and configure the drive, display current values (motor, I/O, and machine data), store and download configurations (several configurations can be stored) and duplicate the configuration of one to another drive. A remote mounting kit for mounting on enclosure door with IP43 degree of protection is available as accessory, to be ordered separately.
- User Language:
- French || German || English || Spanish || Italian || Chinese
- Display Type:
- backlit LCD screen white
- Messages Display Capacity:
- 2 lines
- Net Weight:
- 0.05 kg
- Accessory / Separate Part Destination:
- variable speed drive
- Range Compatibility:
- Easy Altivar 610 || Altivar Machine ATV340
- Ambient Air Temperature For Operation:
- -15-50 °C
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP2010013EN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP21
- Product Specific Application:
- to control, adjust and configure the drive || to display the current values || to save and download configurations
- Accessory / Separate Part Type:
- display terminal
- Realtime Clock:
- without
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Accessory / Separate Part Category:
- display and signalling accessories
- Range Of Product:
- Altivar
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile:
- N/A
- Mercury Free:
- Yes
- Pixel Resolution:
- 128 x 64
- China Rohs Regulation:
- X
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
