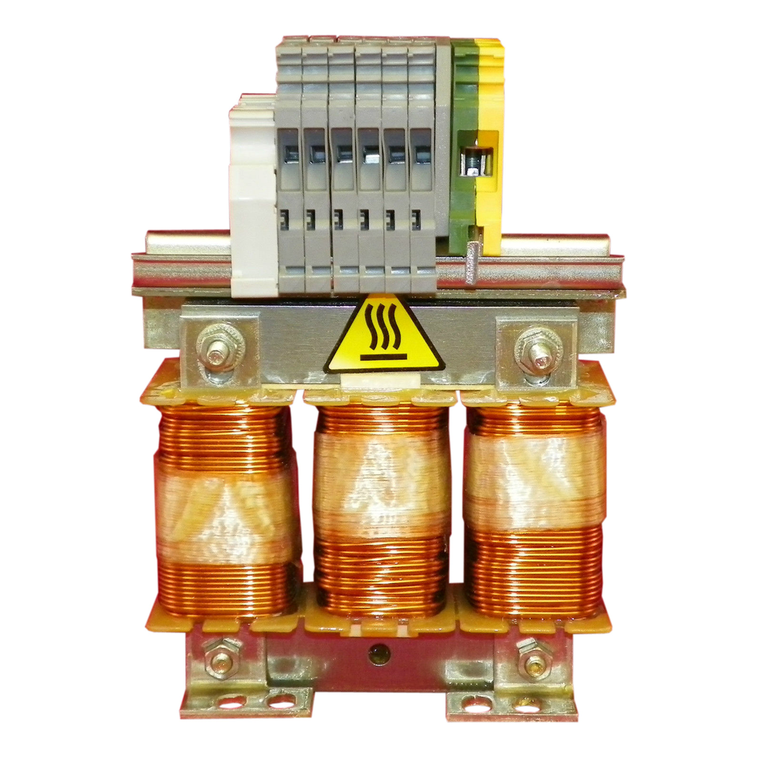

Schneider Electric VW3A4554 Ac Chokes 1Mh 31A
Schneider Electric
$2,580.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric VW3A4554 Ac Chokes 1Mh 31A
This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 31A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 1mH. It weighs 6kg and its dimensions are, 155mm wide, 170mm high, 135mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -25-70 °C
- Device Application:
- reduction of current harmonics || reduction of overvoltages at motor terminals
- Pollution Degree:
- 2 EN 50178
- Mercury Free:
- Yes
- Phase:
- three phase
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Thermal Losses:
- 90 W
- Reach Free Of Svhc:
- Yes
- Product Compatibility:
- variable speed drive ATV310 7.5 kW - motor choke - 1 per drive || ATV31CD11N4 - line choke - 1 per drive || variable speed drive ATV320 15 kW 525...600 V - three phase - motor choke - 1 per drive || ATV312HU55M3 - line choke - 1 per drive || LXM32.D3
- Depth:
- 135 mm
- Net Weight:
- 6 kg
- Value Of Inductance:
- 1 mH
- Operating Altitude:
- <= 3280.84 ft (1000 m) without current derating || 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
- Electrical Connection:
- terminal 16 mm² / AWG 4, 1.2-1.4 N.m
- Electrical Insulation Class:
- class F
- Vibration Resistance:
- 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
- Standards:
- EN 50178 || IEC 60076 (with HD398) || VDE 0160 level 1
- Ambient Air Temperature For Operation:
- 45-55 °C with current derating of 2 % per °C) || 0-45 °C without current derating)
- Toxic Heavy Metal Free:
- Yes
- Ip Degree Of Protection:
- choke IP00 || terminals IP10
- Range Of Product:
- Altivar
- Supply Frequency:
- 50...60 Hz
- Leakage Distance:
- 11.5 mm IEC 60664
- Relative Humidity:
- 0-95 %
- Height:
- 170 mm
- Max Current:
- 1.65 x nominal current 60 s)
- Line Rated Current:
- 31 A
- Environmental Characteristic:
- 3B1 IEC 721-3-3 || 3C2 IEC 721-3-3 || 3S1 IEC 721-3-3
- Width:
- 155 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Minimum Clearance Distance:
- 5.5 mm IEC 60664
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Product Or Component Type:
- line/motor choke
- Warranty:
- 18 months
- Maximum Voltage Drop At Rated Load:
- 0.05
- China Rohs Regulation:
- X
- Rohs Exemption Information:
- Yes
- Range Compatibility:
- Lexium 32 || Altivar 312 Solar || Easy Altivar 310 || Altivar 12 || Lexium 62 || Altivar 71 || Altivar Machine ATV340 || Altivar Machine ATV320 || Altivar Process ATV900 || Altivar 31C || Altivar 61 || Lexium 52 || Altivar 32 || Altivar 312 || Altiva
