Schneider Electric VZ3V32A100 Fan Sub Assembly 200V- 400V Sa Dc24V

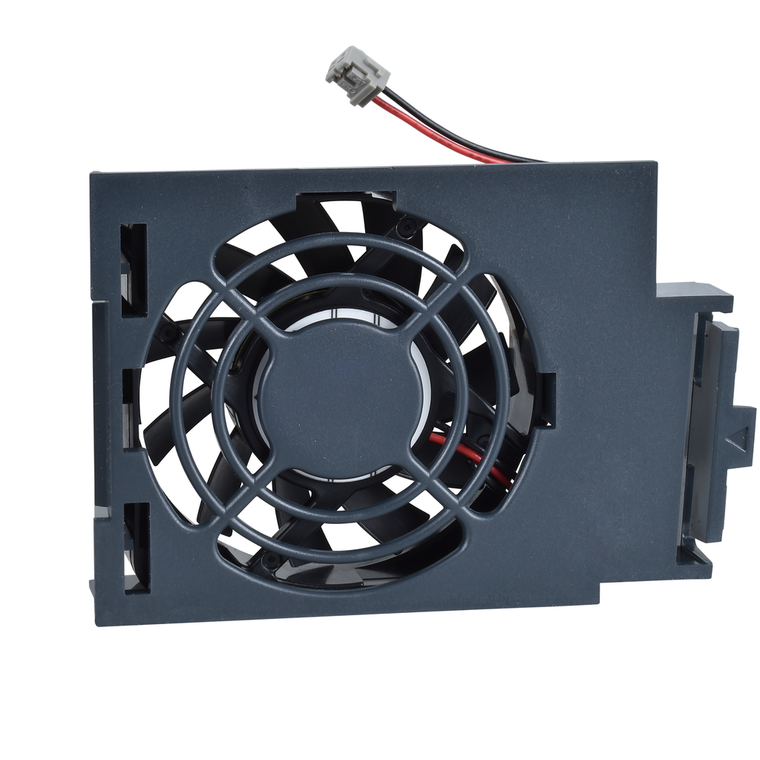

This product is a wear part for Drive Altivar 32 and Altivar 320. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives ATV32 from 0.18kw to 1.5kw and a rated voltage from 200V to 500V, for Altivar 320 from 0.18kw to 1.5kw and a rated voltage from 200V to 500V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 17cm (width) x 23cm (Length) x 7cm (Height) and weighs 178g. This power fan is compatible with ATV320U02M2B to U07M2B, ATV320U04N4B to U15N4B. This kit include 1 Fan, 1 Mounting bracket, 1 Instruction sheet.
- Rohs Exemption Information:
- Yes
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Compatibility:
- variable speed drive ATV32 0.18 kW, 200...240 V single phase || variable speed drive ATV32 0.37 kW, 200...240 V single phase || variable speed drive ATV32 0.55 kW, 200...240 V single phase || variable speed drive ATV32 0.75 kW, 200...240 V single pha
- Accessory / Separate Part Type:
- fan kit
- Range Compatibility:
- Altivar 32 || Altivar 320
- Accessory / Separate Part Destination:
- variable speed drive
- Kit Composition:
- fan || mounting bracket || instruction sheet
- Product Or Component Type:
- fan
- Accessory / Separate Part Category:
- cooling accessory
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
