Schneider Electric XACA471 Pendant Station Xaca 4 Push But To Ns
Schneider Electric
$337.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

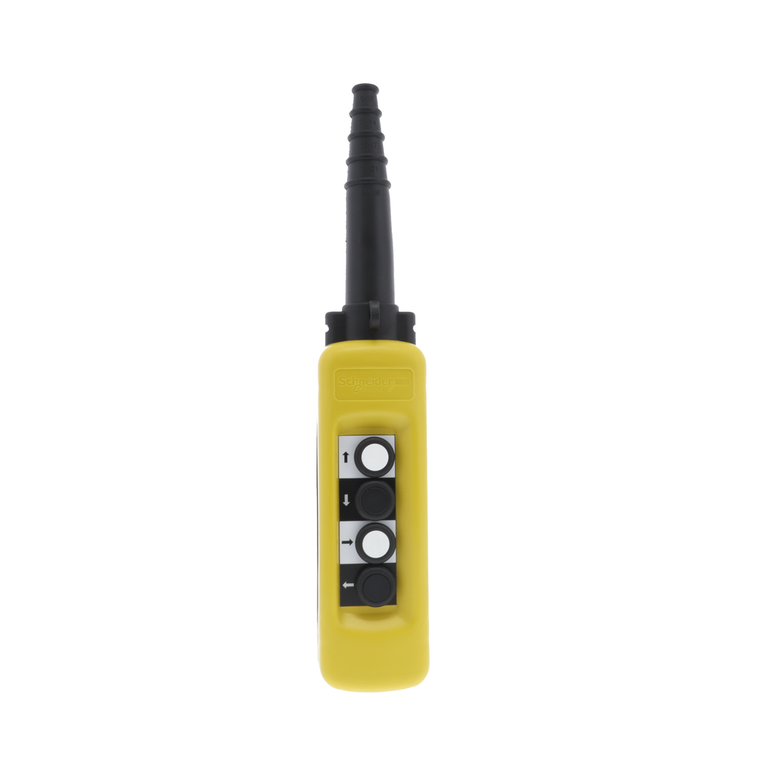

Schneider Electric XACA471 Pendant Station Xaca 4 Push But To Ns
This Harmony XAC, pendant station is ideal to control single speed hoisting applications. This pistol grip shaped pendant control station is ideal for direct control with heavy work gloves of mechanical handling applications such as overhead cranes, tower cranes, fixed hoists and beam hoists. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a solid rubber grommet junction with cable, for maximum water tightness. Its ergonomic pistol grip allows single handed control of your hoist and crane.
- Environmental Disclosure:
- ENVPEP070905EN
- Standards:
- CSA C22.2 No 14 || EN/IEC 60204-32 || UL 508 || EN/IEC 60947-5-1
- Net Weight:
- 0.625 kg
- Ik Degree Of Protection:
- IK08 EN 50102
- Protective Treatment:
- TH
- [Ui] Rated Insulation Voltage:
- 600 V 3)
- Ip Degree Of Protection:
- IP65 conforming to IEC 60529
- Mercury Free:
- Yes
- Electrical Circuit Type:
- control circuit
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shock Resistance:
- 100 gn IEC 60068-2-27
- Rated Operational Power In W:
- 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
- Maximum Resistance Across Terminals:
- 25 MOhm
- Ambient Air Temperature For Operation:
- -25-70 °C
- Vibration Resistance:
- 15 gn 10-500 Hz)IEC 60068-2-6
- Overvoltage Category:
- class II IEC 61140
- Rohs Exemption Information:
- Yes
- Operating Force:
- 10-10 N push-button
- Sustainable Offer Status:
- Green Premium product
- Range Of Product:
- Harmony XAC
- Enclosure Type:
- complete ready for use
- Terminal Identifier:
- (13-14)NO || (11-12)NC
- Enclosure Material:
- polypropylene
- China Rohs Regulation:
- X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Terminals Description Iso N°1:
- (13-14)NO
- Control Station Composition:
- 4 push-buttons
- Product Or Component Type:
- pendant control station
- Control Station Colour:
- yellow
- Contact Code Designation:
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Control Station Application:
- control of single speed hoist motor
- Control Button Type:
- first push-button 1 NO raise, slow || second push-button 1 NO lower, slow || fourth push-button 1 NO left, slow || third push-button 1 NO right, slow
- [Ithe] Conventional Enclosed Thermal Current:
- 0.416666666666667
- Reach Free Of Svhc:
- Yes
- Control Station Type:
- double insulated
- Warranty:
- 18 months
- Device Short Name:
- XACA
- Circularity Profile:
- N/A
- Connections - Terminals:
- screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
- Mechanical Durability:
- 1000000 cycles
- Product Certifications:
- CCC || GOST
- Product Compatibility:
- ZB2BE101 for each direction
- Toxic Heavy Metal Free:
- Yes
- Cable Entry:
- rubber sleeve with stepped entry 8-26 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mechanical Interlocking:
- with mechanical interlocking between pairs
- Contact Operation:
- slow-break
- Short-Circuit Protection:
- 10 A fuse protection cartridge gG
