Schneider Electric XACB020 Empty Pendant Control Station Xacb 2 Ver
Schneider Electric
$274.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

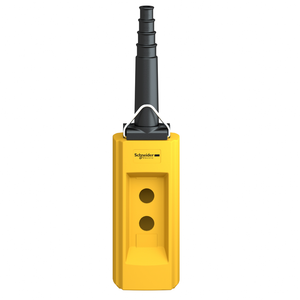

Schneider Electric XACB020 Empty Pendant Control Station Xacb 2 Ver
This yellow empty pendant station for control or power circuits is designed for small hoist applications. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a glass reinforced polyester enclosure with 2 vertical openings diameter 22mm and operator cut-out centres 40 mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Enclosure Type:
- empty enclosure
- Electrical Circuit Type:
- power circuit || control circuit
- Control Station Type:
- double insulated
- Product Or Component Type:
- pendant control station
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- Cable Entry:
- rubber sleeve with stepped entry 7-13 mm
- Mechanical Durability:
- 1000000 cycles
- Vertical Operator Cut-Out Centre:
- 40 mm
- Protective Treatment:
- TH
- Mercury Free:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Ip Degree Of Protection:
- IP65 conforming to IEC 60529
- Guard Rail:
- without
- Vibration Resistance:
- 15 gn 10-500 Hz)IEC 60068-2-6
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Standards:
- CSA C22.2 No 14 || IEC 60947-5-1
- Control Station Colour:
- yellow
- Range Of Product:
- Harmony XAC
- Net Weight:
- 0.76 kg
- Enclosure Material:
- glass reinforced polyester
- Reach Free Of Svhc:
- Yes
- Overvoltage Category:
- class II IEC 61140
- Number Of Cut-Out:
- 2 cut-outs
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Short Name:
- XACB
- Product Certifications:
- CSA type 4
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -25-70 °C
- Shock Resistance:
- 100 gn IEC 60068-2-27
- Ik Degree Of Protection:
- IK08 IEC 62262
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Catalog:
- View
- Datasheet:
- View
