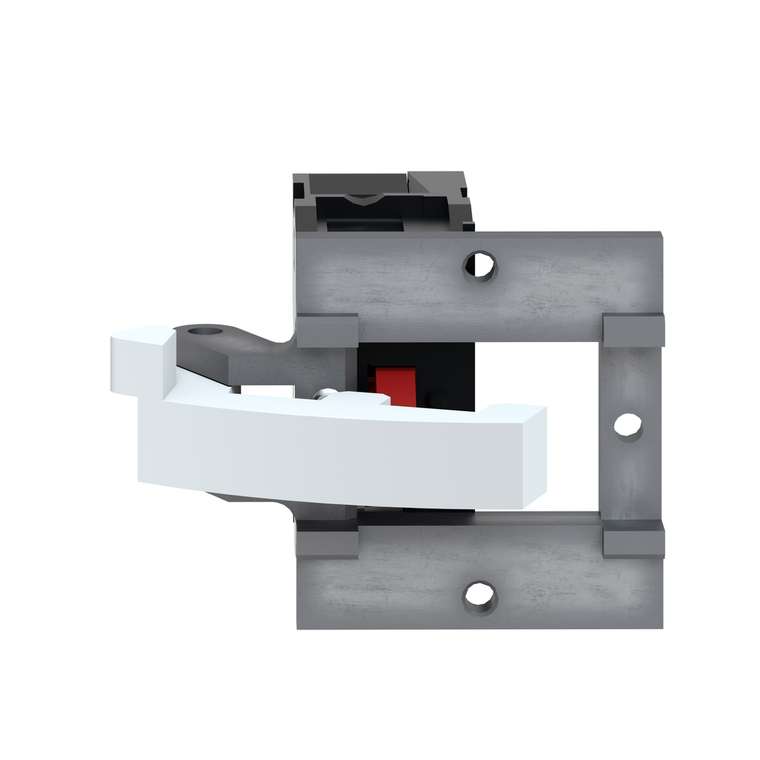

Schneider Electric XACS104 Spring Return Contact Block 2 Nc Base Mo

Schneider Electric XACS104 Spring Return Contact Block 2 Nc Base Mo

Schneider Electric
SKU:
XACS104
|
UPC:
3389110645279
Availability:
Factory stock
$28.08
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XACS104 is a spring return contact block - 2 NC - base mounting. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Additional Information
Standards:
UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1
Type Of Operator:
spring return
Terminals Description Iso N°1:
(21-22)NC || (11-12)NC
Mounting Of Block:
base mounting
Ambient Air Temperature For Storage:
-40-70 °C
[Ithe] Conventional Enclosed Thermal Current:
0.416666666666667
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption Information:
Yes
Product Or Component Type:
contact block
Contact Operation:
slow-break
Contact Block Type:
single
Ambient Air Temperature For Operation:
-25-70 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Component Name:
XACS
Contact Code Designation:
A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Connections - Terminals:
screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Shock Resistance:
100 gn IEC 60068-2-27
Toxic Heavy Metal Free:
Yes
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Mechanical Durability:
1000000 cycles
Rated Operational Power In W:
40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Vibration Resistance:
15 gn 10-500 Hz)IEC 60068-2-6
Range Of Product:
Harmony XAC
Overvoltage Category:
class II IEC 61140
Product Compatibility:
XACA
Operating Force:
11 N
China Rohs Regulation:
X
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Mercury Free:
Yes
Short-Circuit Protection:
10 A fuse protection cartridge gG
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Maximum Resistance Across Terminals:
25 MOhm
Contacts Type And Composition:
2 NC
Reach Free Of Svhc:
Yes
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Net Weight:
0.045 kg
Warranty:
18 months
Electrical Circuit Type:
control circuit
